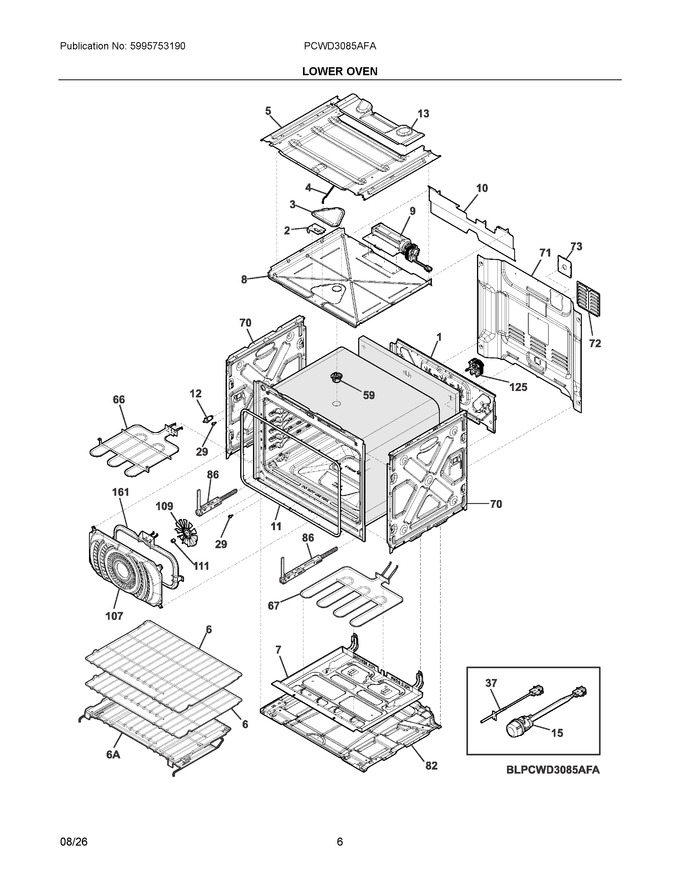

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140152666099		Mounting Panel, Base		Appelez-nous	-
2	5304526367		Latch, Door				$ 15.17
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 10.62
5	5304526313		Panel, Carrier Mid, Lower Dwo, Cooling		Appelez-nous	-
6	5304536326		Rack, Oven, W/handle			Immediately	$ 48.26
7	5304528326		Tray, Hidden Bake				$ 52.33
8	5304526320		Shield, Bottom Duct		Appelez-nous	-
9	140175789035		Blower Assembly, Lower				$ 104.66
10	140287699015		Shield, Insulation, Lower Oven		Appelez-nous	-
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 144.09
12	318394805		Switch, Light, Door				$ 8.06
13	5304526495		Shield, Baffle, Lower Dwo, Cooling		Appelez-nous	-
15	140072023223		Lamp, Halogen, 40w				$ 13.71
29	316517600		Bumper, Front, Main				$ 12.05
37	5304526310		Probe, Oven Sensor			Immediately	$ 43.17
54	140233289069		Receptacle, Meat Probe		Appelez-nous	-
59	140169214032		Tube, Vent Catalyst		Appelez-nous	-
66	140156193199		Element, Broil, 4000w		Appelez-nous	-
67	140156196192		Element, Hidden Bake, 2500w		Appelez-nous	-
70	140144451022		Panel, Side, Exterior		Appelez-nous	-
71	5304526330		Shield, Rear Wire, Lower Dwo				$ 66.08
72	5304526588		Cover, Convection Mtr				$ 17.01
73	5304526551		Cover, Anti Vibration		Appelez-nous	-
82	5304536537		Plate-ext Bottom Sc Wo Raw				$ 33.81
86	5304530348		Hinge, Door, Purple			Immediately	$ 123.26
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 14.41
111	561231207		Nut, Fan Blade			Immediately	$ 18.35
125	5304526375		Motor, Convection Fan				$ 163.80
161	140195758051		Element, Convection, 3800w		Appelez-nous	-
6A	5304530447		Rack Assembly, Glide			Immediately	$ 199.50
86A	5304530349		Hinge, Door, Purple, 2 Spring				$ 63.20
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304530450		Anti Tip, Kit				$ 37.76
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 22.45
NI	5304532105		Harness, Wiring, Upper Oven, Ds				$ 19.51
NI	5304530449		Harness, Wiring, Lower Oven, Door Switch			Immediately	$ 46.36
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304526527		Harness, Wiring, Ovc Board, Lower Oven, To Main Wiring		Appelez-nous	-
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526516		Harness, Wiring, Main				$ 187.22
NI	5304530448		Harness, Ds Mdl, Lower Oven, Hall Effect				$ 41.91
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	140289409017		Harness, Wiring, Jumper		Appelez-nous	-
NI	5304526514		Harness, Main Wiring, Lower Oven				$ 110.93
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIA	5304533896		Bracket, Oven Probe		Appelez-nous	-
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
