SELECT A DIAGRAM

01 - Cover Sheet

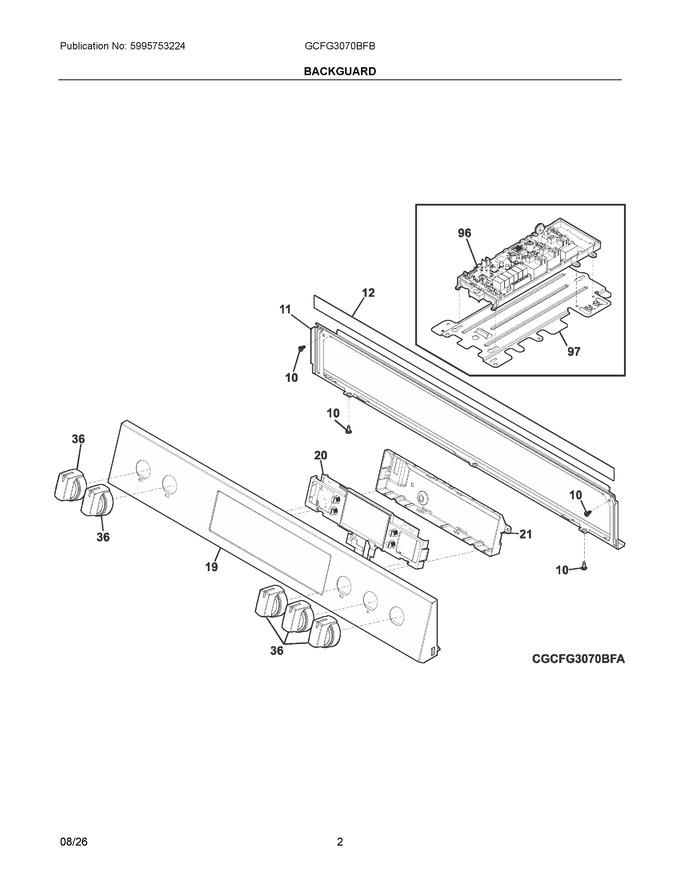

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304535367		Control Panel, Assembly, Ez Care Stnless				$ 144.77
20	140225820301		Control-eoc Ui732 G Sc Fcf				$ 188.43
21	5304535290		Housing, Control				$ 46.62
36	5304536322		Knob, Top Valve, Stainless				$ 39.34
96	140171068079		Pc Board, Assembly, Ovc				$ 128.38
97	5304528373		Bracket, Ovc Board			Immediately	$ 22.13
NI	5304508440		Bushing, Insulating			Immediately	$ 11.38
NI	5304534087		Harness, Wiring, Macs Panel, To Ui				$ 51.26
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIB	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29

    View Diagram in Separate Window       Print Part List
