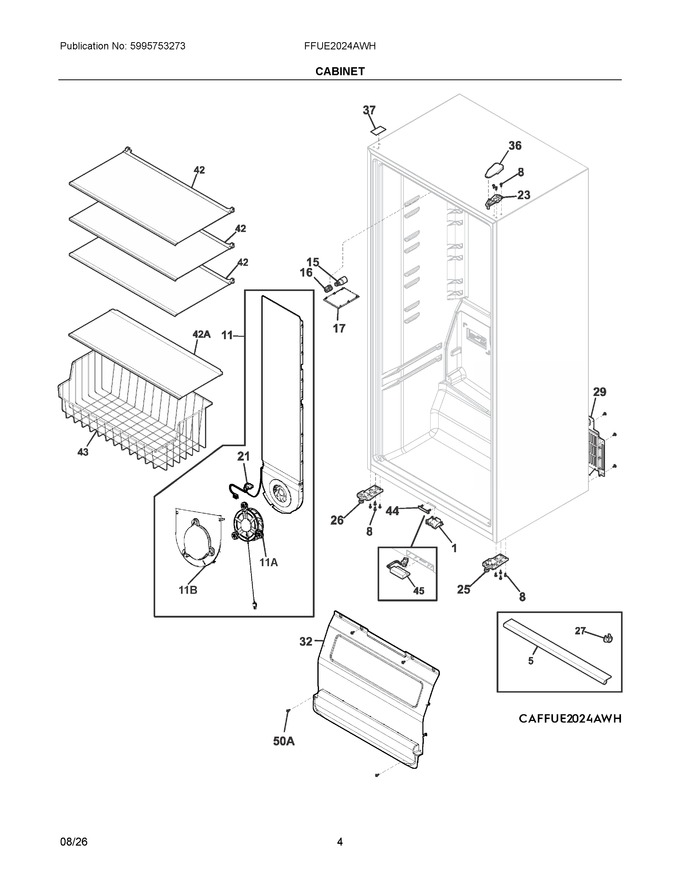

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523792		Cover, Housing, Reed Switch			Immediately	$ 7.96
5	5304524149		Channel, Wiring Harness				$ 39.04
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.08
11	140123717062		Air Tower, Assembly, Complete				$ 137.43
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304530650		Socket, Light, Led			Immediately	$ 10.01
17	5304536791		Lens, Light		Appelez-nous	-
21	5304523788		Harness Assembly, Temp/defrost, W/thermostats   (Replaces: 5304521790)			Immediately	$ 38.56
23	5304537471		Hinge, Upper				$ 5.27
25	5304529045		Hinge-bottom, Assembly, Rh, W/foot-closer				$ 45.55
26	5304523747		Hinge-bottom, Assembly, Lh Non Hinged, W/foot				$ 41.21
27	5304524141		Spacer, Roller, Lower Hinge				$ 9.41
29	5304525858		Cover, Access, Machine Compt.				$ 55.67
32	5304534437		Cover Assembly, Evaporator, W/insulation			Immediately	$ 102.83
36	5304530010		Cover, Upper Hinge, White			Immediately	$ 6.95
37	5304523313		Label, Blank, White, Hole Cover			Immediately	$ 3.55
42	5304536377		Shelf Assembly, 26.7", Glass			Immediately	$ 51.45
43	140322050018		Basket Assembly, Lower		Appelez-nous	-
44	5304524130		Cover, Reed Switch, Front				$ 10.63
45	5304527992		Reed Switch Harness, Assembly			Immediately	$ 81.69
11A	140213829033		Fan Assembly, Motor, Evaporator			Immediately	$ 49.81
11B	5304523722		Mount-fan, Evaporator			Immediately	$ 18.79
42A	5304536378		Shelf Assembly, 27.8", Glass				$ 38.90
50A	5304523738		Screw, Hex Wash Hd, M4.2 X 16				$ 6.51
NI	5304534034		Screw, Type Ab, #10-16		Appelez-nous	-
NIA	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NIA	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17

    View Diagram in Separate Window       Print Part List
