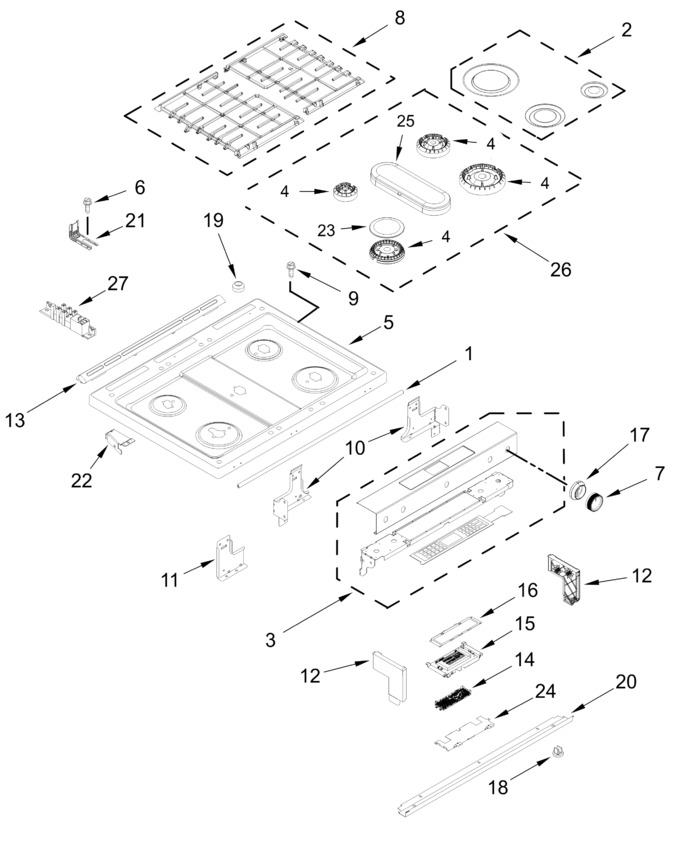

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11732692 | Cooktop Gasket (Replaces: W11687826) |
|
- | |||||
| 2 | W11834855 | Burner Cap Kit (black) (Replaces: W11734528) |
|
- | |||||
| 3 | W11826773 | Panel, Upper Console (stainless) |
|
- | |||||
| 4 | W11436986 | Flame Spreader, Stack (Replaces: W11348511) |
|
Immediately | $ 124.90 | ||||
| 5 | W11445310 | Cooktop (stainless) (Replaces: W11117940) |
|
$ 420.47 | |||||
| 6 | 7101P48560 | Screw, Anti-tip |
|
- | |||||
| 7 | W11844167 | Dual, Knob (stainless) (Replaces: W11825168) |
|
- | |||||
| 8 | W11241056 | Grate Kit (black, Set Of 2) (Replaces: W11188538) |
|
$ 368.89 | |||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 27.05 | |||||
| 11 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 12 | W10555937 | Endcap (stainless, Left) |
|
$ 61.16 | |||||
| 13 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 14 | W11844168 | Control, Mrc2 (Replaces: W11822044) |
|
- | |||||
| 15 | W11128223 | Display Assembly (Replaces: W10759323) |
|
Immediately | $ 529.17 | ||||
| 16 | W10555923 | Bracket, User Interface |
|
$ 96.69 | |||||
| 17 | W11844164 | Bezel (stainless) (Replaces: W11823571) |
|
- | |||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 20 | W10743276 | Panel, Lower Console (stainless) |
|
Immediately | $ 78.01 | ||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 21.77 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 23 | W11576413 | Cap, Stack Burner (black) (Replaces: W11346163) |
|
$ 80.33 | |||||
| 24 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 25 | W11548764 | Spreader, Flame (fish) (Replaces: W11357364) |
|
$ 145.55 | |||||
| 26 | W11834876 | Burner Kit (set Of 5) (Replaces: W11367105) |
|
Immediately | $ 257.45 | ||||
| 27 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| W11531096 | Flame Spreader (Replaces: W11352193) |
|
$ 73.73 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | ||||||
| ARIB2462F5426468C5AE629831619D23DA6 | (right Front, Right Rear, Left Rear, Center) |
|
- | ||||||
| W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 114.61 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W10580316 | Harness, Bake Drawer |
|
Immediately | $ 167.12 | |||||
| W11531098 | Flame Spreader (Replaces: W11352197) |
|
$ 72.65 | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11531097 | Flame Spreader (Replaces: W11352195) |
|
$ 73.04 | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 70.73 | ||||||
| W11844159 | Harness, Main (Replaces: W11823332) |
|
- | ||||||
| W10555940 | Endcap (stainless, Right) |
|
$ 61.16 | ||||||
| W11844163 | Single, Knob (stainless) (Replaces: W11823569) |
|
- | ||||||
| W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | |||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | ||||||
| W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 202.46 | |||||
| W11563527 | Bracket, Support (right) |
|
- |
