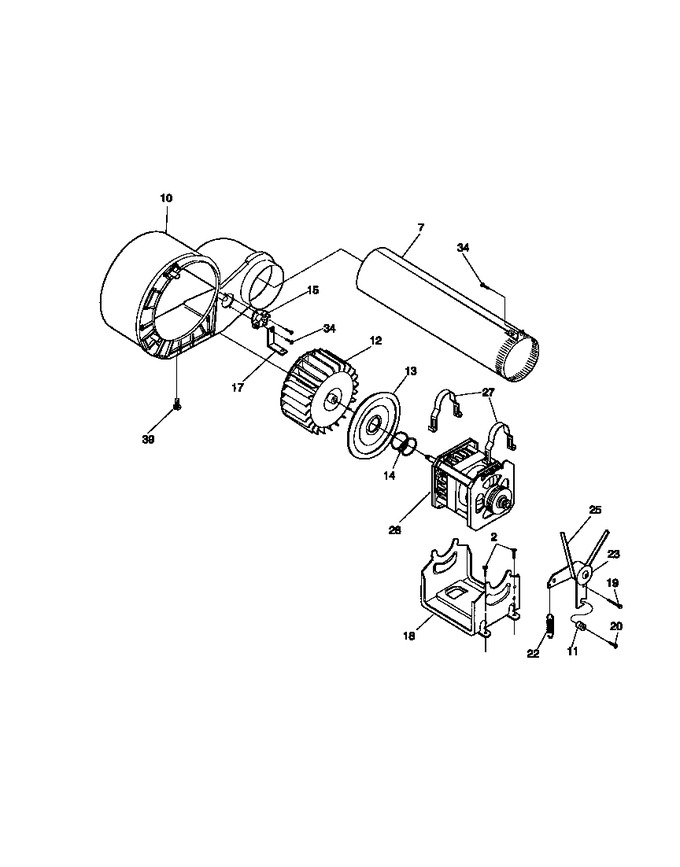

05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Hd Locking, 10-16ab X .375, Cr/sq Drive			Immediately	$ 14.18
7	5303269973		Tube-exhaust		Appelez-nous	-
10	5303270858		Housing, Fan		Appelez-nous	-
11	5303281076		Spacer-idler Arm		Appelez-nous	-
12	5303281079		Wheel, Blower				$ 219.03
13	5303307784		Cover-fan		Appelez-nous	-
14	5303281083		Spring-fan Cover		Appelez-nous	-
15	131383100		Thermostat-control		Appelez-nous	-
17	5303269972		Bracket, Grounding		Appelez-nous	-
18	131367101		Cradle, Motor		Appelez-nous	-
19	131205300		Screw-idler Arm, Comb Pnhd B, 10-16 X 0.750			Immediately	$ 12.10
20	131017900		Screw-spacer, Hhd T, 1/4-20 X 1.250				$ 14.46
22	5303281085		Spring, Idler				$ 13.01
23	131863007		Arm-idler   (Replaces: 131434600)			Immediately	$ 43.05
25	134503600		Belt-dryer   (Replaces: 5303283471)			Immediately	$ 18.79
27	5303212834		Clamp, Motor				$ 3.78
28	5303283470		Motor & Pulley				$ 414.17
34	131243700		Screw, Comb Pnhd Ab, 8-18 X 0.375				$ 3.36
39	131205100		Screw, 8comb Ph B, 10-10 X 0.50			Immediately	$ 14.18
