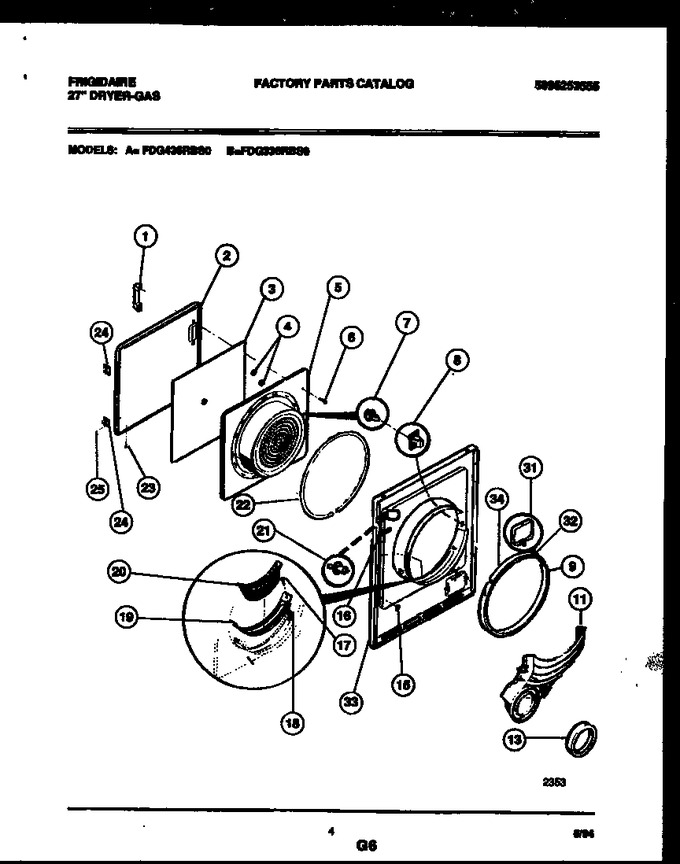

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131192302		Handle, Almond				$ 33.32
2	5303299162		Outer Door-almond		Appelez-nous	-
3	5303281067		Heat Shield		Appelez-nous	-
4	3201205		Spacer		Appelez-nous	-
5	3201207		Inner Door, Almond		Appelez-nous	-
6	5303281051		Screw				$ 4.52
7	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
8	5366021400		Door Catch   (Replaces: 5307521419)			Immediately	$ 55.99
9	5303281049		Seal				$ 38.12
11	5303937116		Air Duct		Appelez-nous	-
13	134417000		Seal   (Replaces: 5303281013)			Immediately	$ 9.22
15	5303281074		Clip-guide				$ 18.27
16	131063700		Clip				$ 18.11
17	3281178		Screw		Appelez-nous	-
18	3281061		Clip				$ 2.73
19	5303270382		Lint Trap & Frame		Appelez-nous	-
20	5303270382		Lint Trap		Appelez-nous	-
21	5308001614		Door Switch		Appelez-nous	-
22	5303201210		Door Gasket				$ 45.68
23	5303161187		Screw		Appelez-nous	-
24	5303281050		Door Hinge				$ 20.58
25	5303161187		Screw		Appelez-nous	-
31	3201213		Access Door-almond		Appelez-nous	-
32	3281066		Screw		Appelez-nous	-
33	5303937122		Front Panel-almond		Appelez-nous	-
34	DE790		Glide-drum   (Replaces: 131154800)			Immediately	$ 40.53

    View Diagram in Separate Window       Print Part List
