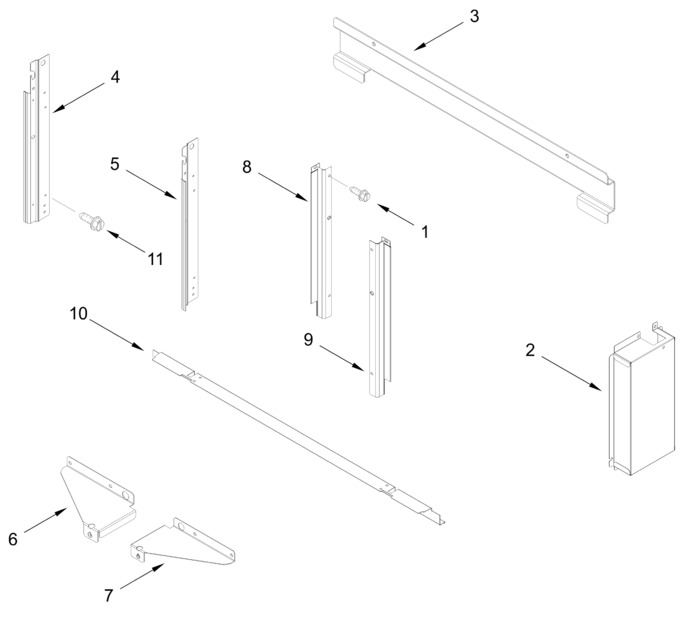

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11602623		Screw   (Replaces: W11404000)				$ 12.81
2	W11759561		Box, Conduit   (Replaces: W11748304)		Appelez-nous	-
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 62.93
4	W11627410		Siderail, Combo (left)				$ 55.53
5	W11627411		Siderail, Combo (right)				$ 53.65
6	W10239158		Bracket, Lower (left)		Appelez-nous	-
7	W10239159		Bracket, Lower (right)		Appelez-nous	-
8	W11239807		Trim, Bended Side (left)				$ 73.65
9	W11239805		Trim, Bended Side (right)		Appelez-nous	-
10	W11312229		Trim, Bottom				$ 337.52
11	7101P65360		Screw		Appelez-nous	-
	W11555848		Harness, Input		Appelez-nous	-
	W11356991		Harness, Ground Console Combo		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	4450800		Screw, Grounding				$ 12.12
	W11759563		Harness, Inverter   (Replaces: W11746724)		Appelez-nous	-
	W11759565		Harness, Jumper   (Replaces: W11746440)		Appelez-nous	-
	W11759566		Conduit   (Replaces: W11746543)		Appelez-nous	-
	W11759562		Harness, Main Upper Mwo   (Replaces: W11746723)				$ 264.08
	W11754867		Harness, Main Lower Mwo   (Replaces: W11706181)				$ 131.66
	W11759564		Harness, Comm And Eol   (Replaces: W11595116)		Appelez-nous	-
	W11754863		Harness, Fan And Turntable   (Replaces: W11476496)		Appelez-nous	-
	W11598162		Bag, Hardware   (Replaces: W11394925)				$ 14.05
