SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter

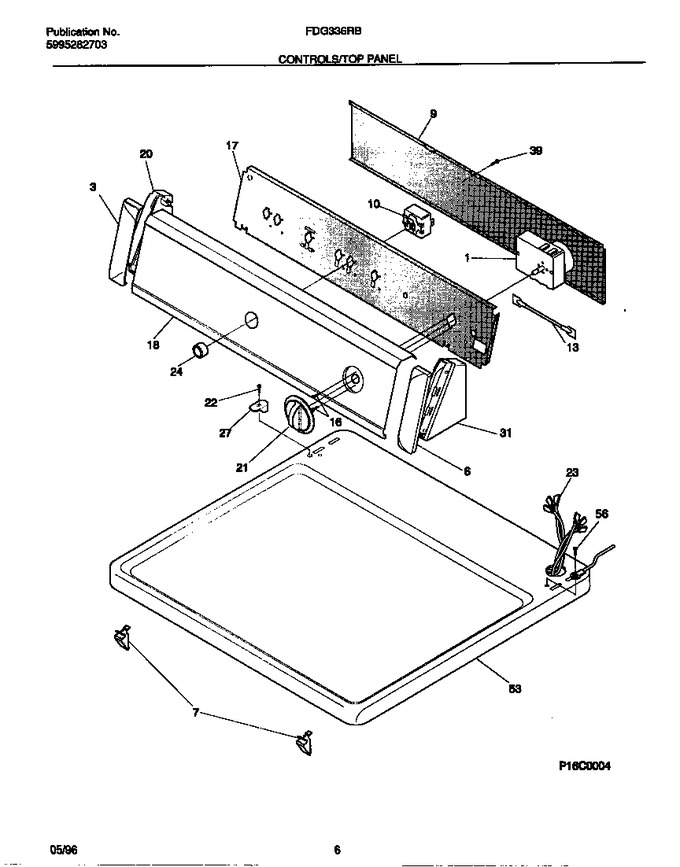

04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062400		Timer-dryer				$ 329.81
3	131122612		Cover-end Cap, Almond, Lh		Appelez-nous	-
6	131122602		Cover-end Cap, Almond, Rh		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	131048000		Switch-push/start		Appelez-nous	-
13	5308015784		Resistor		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131297306		Bracket-controls		Appelez-nous	-
18	131280500		Panel-control-almond		Appelez-nous	-
19	131205300		Screw, 10-16 X .75			Immediately	$ 12.10
20	131122712		End Cap, Almond, Lh		Appelez-nous	-
21	131141002		Knob, Timer, Almond		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131569600		Harness		Appelez-nous	-
24	131111504		Knob-start Switch, Almond		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122702		End Cap, Almond, Rh		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131130404		Panel-top Almond		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
*28202	5303281103		Tie-harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
