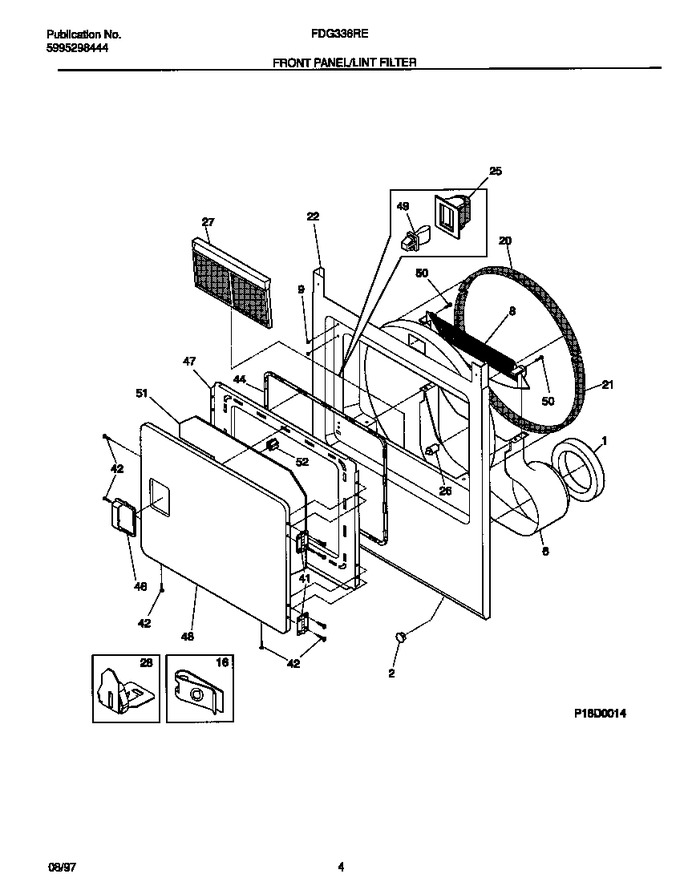

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal-air Duct   (Replaces: 131581400)			Immediately	$ 9.22
2	131432301		Plug-almond		Appelez-nous	-
6	131621900		Duct-air		Appelez-nous	-
8	131622202		Cover-lint Trap   (Replaces: 131622201)				$ 94.82
9	131633201		Plug-almond		Appelez-nous	-
16	131063700		Clip-wiring				$ 18.11
20	DE790		Glide-drum   (Replaces: 5303937123)			Immediately	$ 40.53
21	5303283286		Seal-basket Lower				$ 48.04
22	131635811		Panel-front, Almond		Appelez-nous	-
25	5366021400		Catch, Door   (Replaces: 5307521419)			Immediately	$ 55.99
26	5308001614		Switch-door		Appelez-nous	-
27	131450300		Lint Trap			Immediately	$ 30.47
28	5303281074		Clip-guide,(3)				$ 18.27
41	134222900		Hinge-door   (Replaces: 131627500)				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131484401		Handle-door, Almond		Appelez-nous	-
47	131574005		Door-inner Almond		Appelez-nous	-
48	131574105		Door-outer, Almond		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw-lock, Ph Ab, 10-16 X .50		Appelez-nous	-
51	131573500		Liner-noise		Appelez-nous	-
52	5304400861		Spacer-door		Appelez-nous	-
