Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 131141701 Backsheet Appelez-nous -
3 5308006553 Screw (4) Appelez-nous -
4 5303297139 Timer Special Order $ 387.45

5 131048000 Switch, Start Appelez-nous -
6 131288900 Switch-temperature Special Order $ 18.69

7 131141302 Pushbutton, Almond Appelez-nous -
8 131122702 End Cap-rh-almond Appelez-nous -
9 3205821 Spring Catch In-Stock Immediately $ 35.44

11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

12 131141102 Knob-rotary-almond Appelez-nous -
14 5303210285 Buzzer Special Order $ 65.78

15 131297306 Bracket-controls Appelez-nous -
16 5303015671 Screw Appelez-nous -
17 131122712 End Cap Lh-almond Appelez-nous -
17 131122711 End Cap-l.h.-white Special Order $ 58.38

18 5303289526 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 131141002 Knob, Timer, Almond Appelez-nous -
23 134011703 Knob, Timer, White   (Replaces: 131141001) In-Stock Immediately $ 58.56

25 131280700 Panel-control-almond Appelez-nous -
26 131266500 Harness Appelez-nous -
28 131130404 Panel-top Almond Appelez-nous -
30 131122602 Cover, Cap, Rh, Almond Appelez-nous -
31 131122612 Cover, Cap, Lh, Almond Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

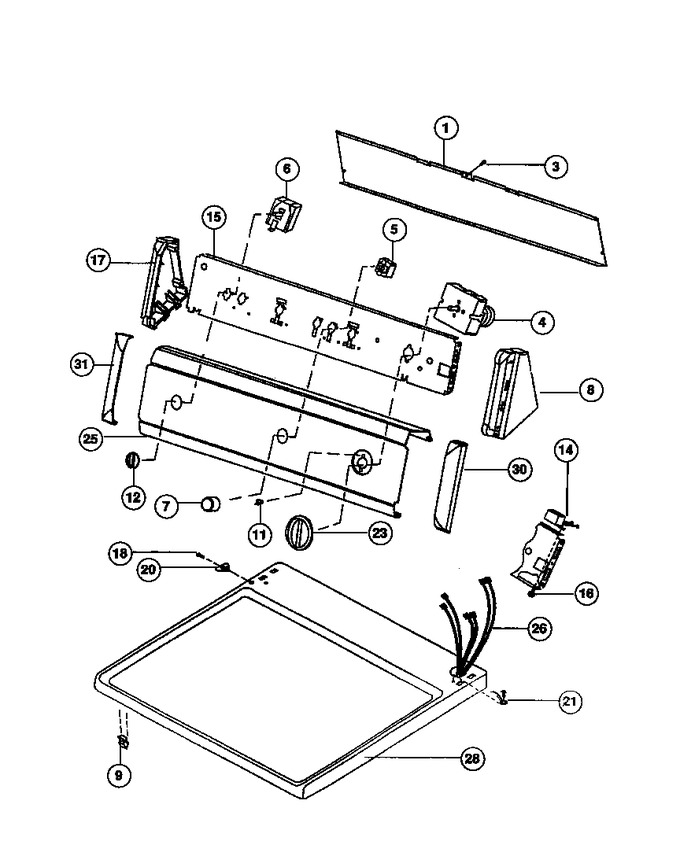

Diagram for FDG436RBT1
