Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
3 131205100 Screw (4) In-Stock Immediately $ 14.18

4 131063300 Timer Appelez-nous -
5 131048000 Switch, Start Appelez-nous -
6 131048100 Switch, Temperature Appelez-nous -
7 131111500 Pushbutton Special Order $ 13.55

8 5303291352 End Cap-rh Special Order $ 56.49

9 3205821 Spring Catch In-Stock Immediately $ 35.44

11 218359202 Screw   (Replaces: 5303283289) Special Order $ 10.63

12 131081000 Knob-rotary Appelez-nous -
14 5303210285 Buzzer Special Order $ 65.78

15 131297306 Bracket-control Appelez-nous -
16 5303015671 Screw Appelez-nous -
17 5303291344 End Cap-lh Special Order $ 59.59

18 5303289526 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 5303297893 Knob-timer Special Order $ 43.73

25 131280100 Panel-control Appelez-nous -
26 131159600 Harness Appelez-nous -
28 5303931763 Panel, Top, Almond Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

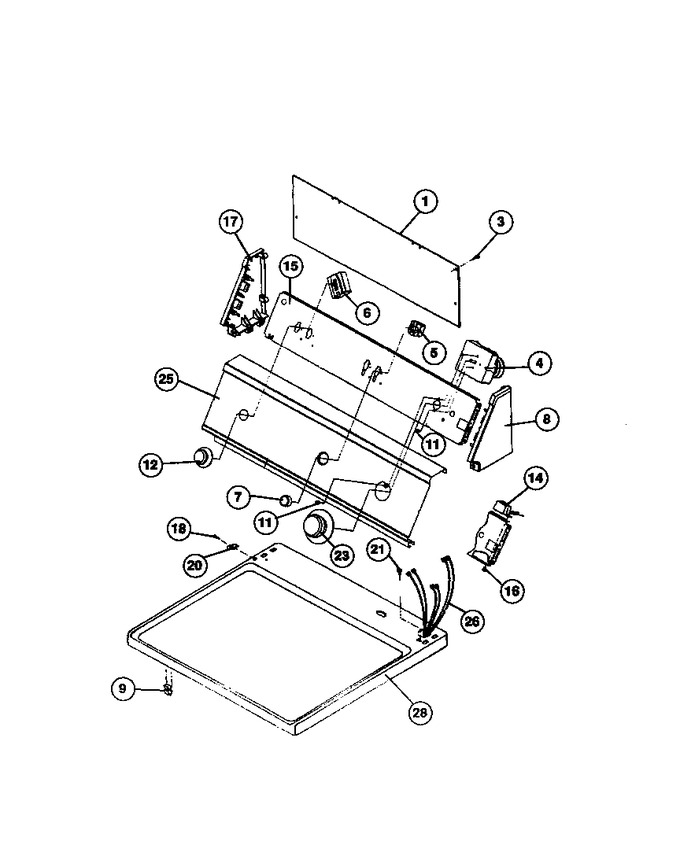

Diagram for FDG546DBD1
