SELECT A DIAGRAM

01 - Cover

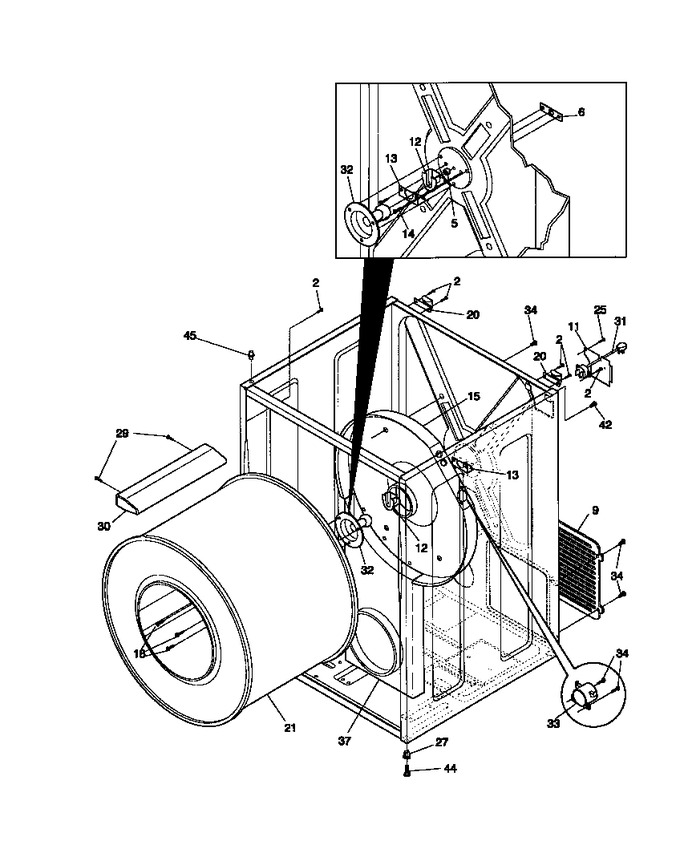

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Hd Locking, 10-16ab X 0.375, Cr/sq Drive			Immediately	$ 14.18
5	5303281019		Ball				$ 16.30
6	5303281020		Clip-ball				$ 17.01
9	5303281018		Panel-access		Appelez-nous	-
11	131363200		Cover-term Block		Appelez-nous	-
12	131825900		Bearing-shaft   (Replaces: 5303281008)			Immediately	$ 10.97
13	131724301		Bracket-bearing   (Replaces: 5303281023)			Immediately	$ 25.66
14	131205400		Screw-bracket, 10-16b X 1.375, Cr/sq Drive				$ 12.76
15	5303281119		Housing-heat		Appelez-nous	-
18	131378200		Screw, Pan Hd Locking, 10-16ab X 0.375, Cr/sq Drive		Appelez-nous	-
20	131332700		Bracket-hinge		Appelez-nous	-
21	131217700		Drum Assy		Appelez-nous	-
25	5303015671		Screw		Appelez-nous	-
27	3201202		Grommet, Leveling Leg				$ 22.47
29	131382300		Screw-vane, Quadrex Head, 10-14 X 1.00, Special			Immediately	$ 13.46
30	137552900		Vane   (Replaces: 5303201200)				$ 54.95
31	5303281129		Cord-electric Power		Appelez-nous	-
32	131777700		Shaft Assy   (Replaces: 131378400)			Immediately	$ 71.87
33	5308015399		Thermostat - Safety				$ 242.18
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
37	3281123		Duct-heat		Appelez-nous	-
42	134154100		Screw-ground Cab, Hex Washer Head, 10-32t X 0.375, Serr   (Replaces: 131301100)				$ 13.46
44	5303281032		Foot-cabinet		Appelez-nous	-
45	131346400		Pin, Locating				$ 12.44
*19360	3281102		Clip-harness		Appelez-nous	-
*19361	131353500		Clip, Cabinet Bottom		Appelez-nous	-
*19362	5303281153		Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32			Immediately	$ 46.64

    View Diagram in Separate Window       Print Part List
