SELECT A DIAGRAM

01 - Cover


02 - P16v0026 Dry Cab,heater


03 - P16d0018 Frnt Pnl, Door

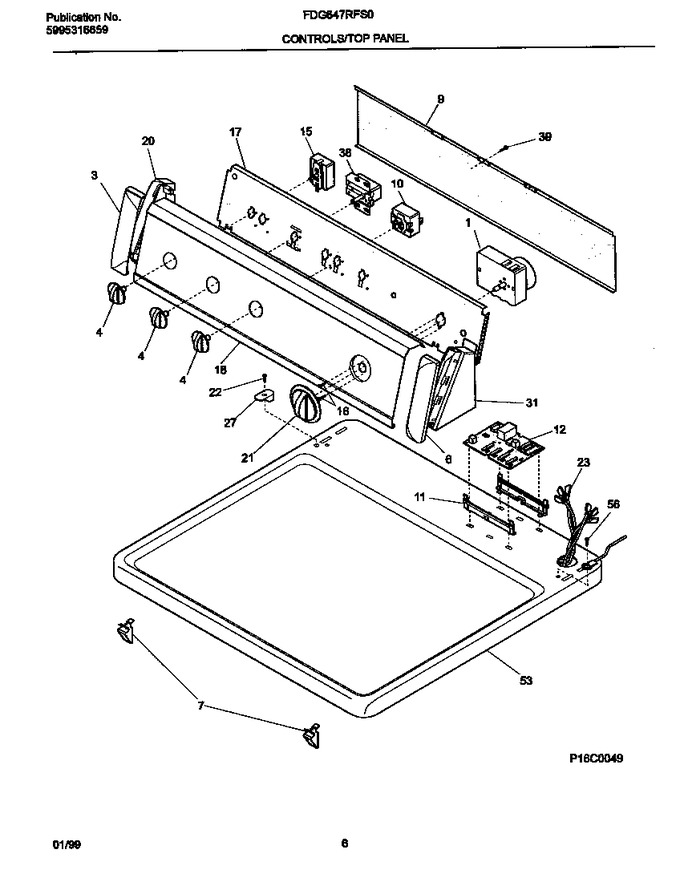

04 - P16c0049 Control Panel


05 - P16m0016 Motor, Blower


06 - P16b0009 Burner, Valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131579800		Timer-dryer				$ 607.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
11	131587400		Bracket-control Board,(2)				$ 44.40
12	131620200		Board-control,moisture Sensor		Appelez-nous	-
15	131641900		Switch-temperature		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-controls		Appelez-nous	-
18	131797800		Trimplate Fde/b7rrhf-4		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	134011703		Knob, Timer, White   (Replaces: 131141001)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131633600		Harness-dryer		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
38	131048300		Buzzer		Appelez-nous	-
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46

    View Diagram in Separate Window       Print Part List
