02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner

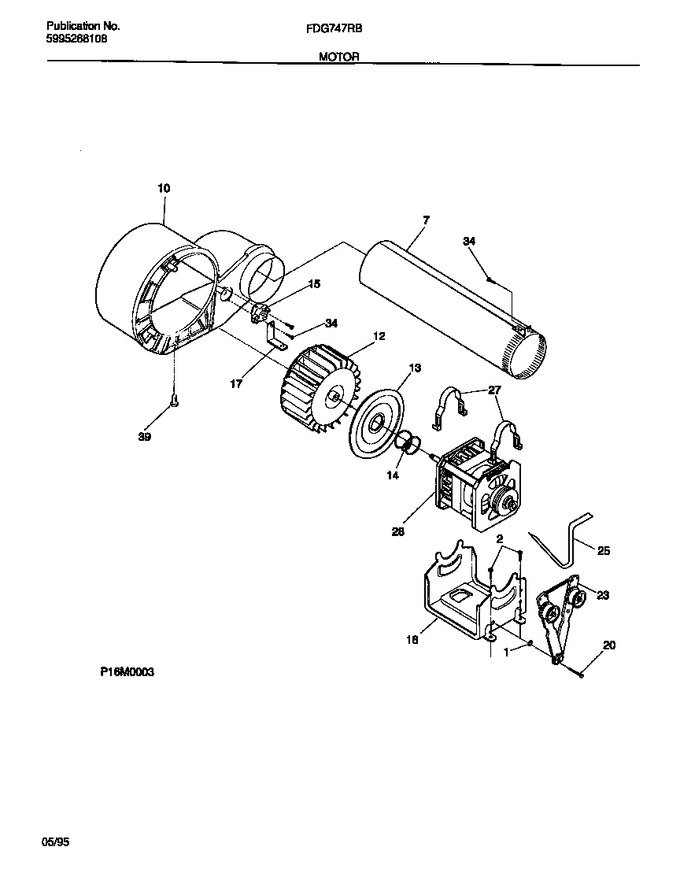

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131163400		Washer-rubber		Appelez-nous	-
2	131168200		Screw, Pan Hd Locking, 10-16ab X 0.375, Cr/sq Drive			Immediately	$ 14.18
7	5303269973		Tube-exhaust		Appelez-nous	-
10	5303270858		Housing, Fan		Appelez-nous	-
12	131089400		Wheel, Blower		Appelez-nous	-
13	5303307784		Cover-fan		Appelez-nous	-
14	5303281083		Spring-fan Cover		Appelez-nous	-
15	131383100		Thermostat-control		Appelez-nous	-
17	5303269972		Bracket, Grounding		Appelez-nous	-
18	131367101		Cradle, Motor		Appelez-nous	-
20	131017900		Screw-spacer, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 14.46
23	131382400		Arm-idler		Appelez-nous	-
25	131553800		Belt   (Replaces: 131130700)			Immediately	$ 28.35
27	5303212834		Clamp, Motor				$ 3.78
28	131198400		Motor & Pulley		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
