SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner

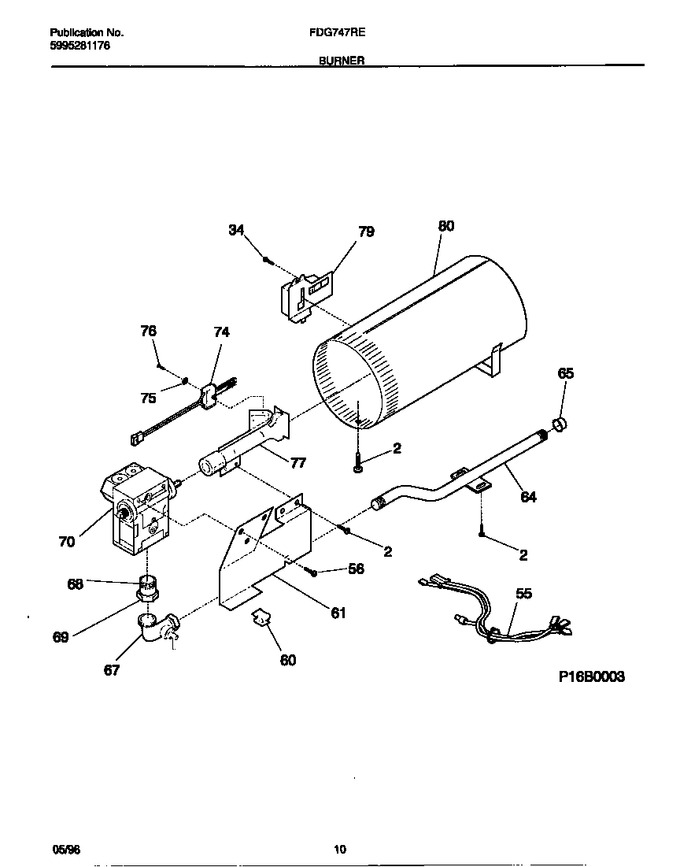

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
55	5303281137		Harness-gas Valve		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
60	3281126		Clip-wiring, Gas Bracket		Appelez-nous	-
61	131418701		Bracket-burner		Appelez-nous	-
64	5303286873		Pipe		Appelez-nous	-
65	08015112		Cap-pipe		Appelez-nous	-
67	131498500		Valve-shut Off		Appelez-nous	-
68	5362791200		Union-male Connector, Brass				$ 52.98
69	08015194		Nut-union, Hex		Appelez-nous	-
70	5303207409		Valve-gas   (Replaces: 131180700)				$ 433.76
74	5303937186		Ignitor Assy   (Replaces: 5303281151)				$ 80.61
75	3201209		Washer		Appelez-nous	-
76	131205300		Screw, 10-16 X .75			Immediately	$ 12.10
77	131553400		Burner Assy		Appelez-nous	-
79	131196900		Sensor		Appelez-nous	-
80	5303305678		Duct-burner		Appelez-nous	-
*17962	131411100		Lp Gas Conv Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
