02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
06 - Burner, Manifold And Gas Control
SELECT A DIAGRAM
New Model Search:

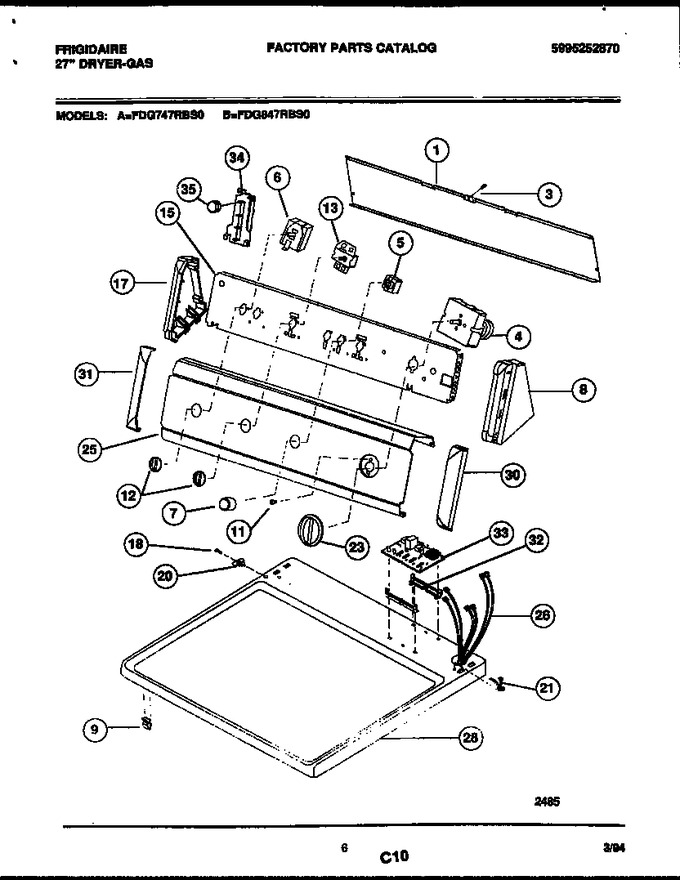

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131141701 | Backsheet |
|
- | |||||
| 3 | 5308006553 | Screw |
|
- | |||||
| 4 | 131111400 | Timer |
|
- | |||||
| 5 | 131048000 | Switch, Start |
|
- | |||||
| 7 | 131141301 | Pushbutton-white |
|
- | |||||
| 8 | 131122701 | End Cap-r.h.-white |
|
$ 53.29 | |||||
| 9 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| 11 | 218359202 | Screw (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 12 | 131141101 | Knob-rotary-white |
|
- | |||||
| 13 | 131048300 | Buzzer |
|
- | |||||
| 15 | 131297302 | Bracket-controls |
|
- | |||||
| 17 | 131122711 | End Cap-l.h.-white |
|
$ 58.38 | |||||
| 18 | 5303289526 | Screw |
|
- | |||||
| 20 | 131197000 | Clip |
|
$ 13.62 | |||||
| 21 | 131243800 | Screw |
|
$ 10.46 | |||||
| 23 | 134011703 | Knob, Timer, White (Replaces: 131141001) |
|
Immediately | $ 58.56 | ||||
| 25 | 131281200 | Panel-control-white |
|
- | |||||
| 26 | 131222700 | Harness |
|
- | |||||
| 28 | 131130302 | Panel-top-white |
|
- | |||||
| 30 | 131122601 | Cover-cap-rh-white |
|
$ 47.20 | |||||
| 31 | 131122611 | Cover-cap-lh-white |
|
$ 42.21 | |||||
| 32 | 131089800 | Bracket-control Board (2) |
|
$ 50.83 | |||||
| 33 | 131167400 | Control Board |
|
- | |||||
| 34 | 131048200 | Switch-temperature |
|
$ 193.03 | |||||
| 35 | 131141201 | Pushbutton-white (4) |
|
- |
