01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter

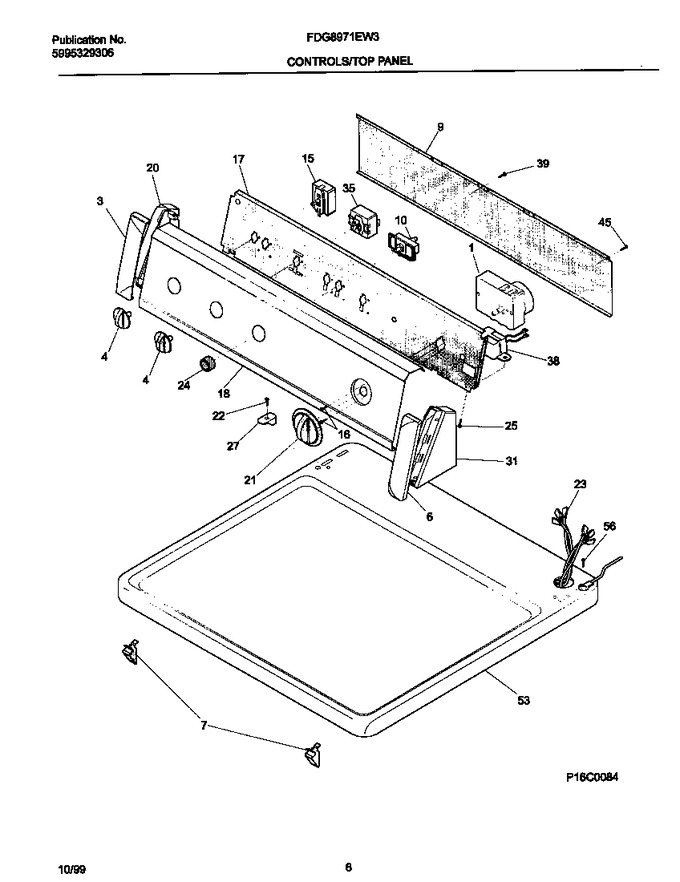

04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer-dryer P Gas				$ 336.65
3	131122610		Cover-end Cap,black ,lh		Appelez-nous	-
4	131858004		Knob-rotary,blk/blue   (Replaces: 131141100)			Immediately	$ 55.29
6	131122600		Cover-end Cap,black ,rh		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	131469000		Switch-push/start			Immediately	$ 55.81
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-
18	131615000		Panel-control		Appelez-nous	-
20	131122710		End Cap,black ,lh				$ 94.19
21	134011703		Knob-timr-blk/blue Ind Ultra   (Replaces: 131790000)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131847100		Harness Prh Gas		Appelez-nous	-
24	131111500		Knob-start Switch, Black				$ 13.55
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122700		End Cap,black ,rh				$ 104.90
35	131243200		Switch-temp		Appelez-nous	-
38	131629400		Buzzer-mini				$ 84.30
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*76604	131629600		Harness-buzzer,mini				$ 15.81
