SELECT A DIAGRAM

01 - Cover

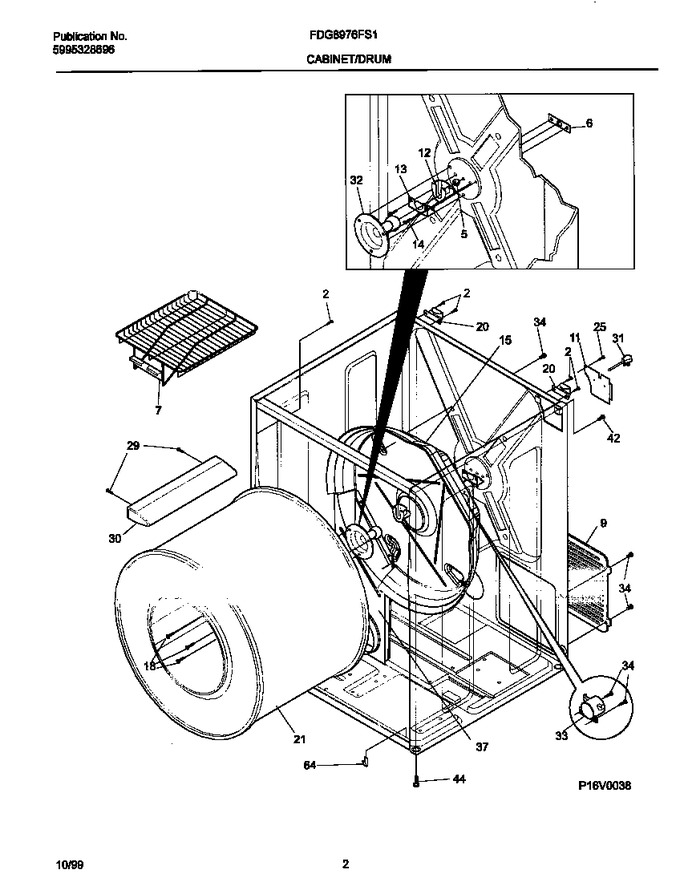

02 - P16v0038 Dry Cab,heater


03 - P16d0020 Frnt Pnl,door


04 - P16c0093 Control Panel


05 - P16m0019 Motor,blower


06 - P16b0010 Burner,valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
5	5303281019		Ball				$ 16.30
6	5303281020		Clip-ball				$ 17.01
7	131557600		Rack-drying		Appelez-nous	-
9	131793201		Panel-access		Appelez-nous	-
11	131363200		Cover-term Block		Appelez-nous	-
12	131825900		Bearing-drum Support			Immediately	$ 10.97
13	131724301		Bracket-bearing   (Replaces: 131724300)			Immediately	$ 25.66
14	131205400		Screw-bracket, 10-16b X 1.375, Cr/sq Drive				$ 12.76
15	131600500		Housing, Gas Heater Assy, W/seal		Appelez-nous	-
18	131168200		Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375   (Replaces: 131477000)			Immediately	$ 14.18
20	131469100		Bracket-hinge				$ 44.84
21	134138200		Asmy-fs Drum-gas-galv   (Replaces: 131427804)			Immediately	$ 592.52
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
29	131382300		Screw-vane, Quadrex Head, 10-14 X 1.00, Special			Immediately	$ 13.46
30	137552900		Vane   (Replaces: 5303201200)				$ 54.95
31	5303281129		Cord-electric Power		Appelez-nous	-
32	131777700		Asmy-shaft (ballhitch)			Immediately	$ 71.87
33	5308015399		Thermostat - Safety				$ 242.18
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
37	131648601		Duct-heat		Appelez-nous	-
42	134154100		Screw-grnd Cab,hex Wshr Hd,10-32t X 0.375,serrate   (Replaces: 131301100)				$ 13.46
44	131527400		Foot-cabinet				$ 0.95
64	131353500		Clip, Cabinet Bottom		Appelez-nous	-
*97680	5303281153		Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32			Immediately	$ 46.64
*97681	5303307893		Lubricant, High Temp				$ 34.02

    View Diagram in Separate Window       Print Part List
