SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter

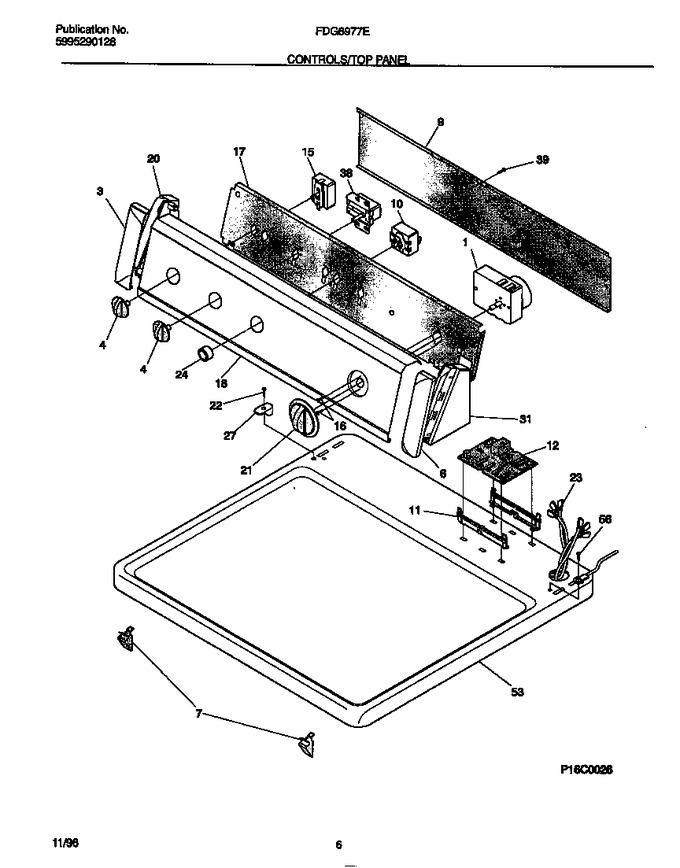

04 - Controls/top Panel


05 - Motor


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131111300		Timer		Appelez-nous	-
3	131122610		Cover-end Cap,black ,lh		Appelez-nous	-
4	131858004		Knob-rotary,blk/blue   (Replaces: 131141100)			Immediately	$ 55.29
6	131122600		Cover-end Cap,black ,rh		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	131469000		Switch-push/start			Immediately	$ 55.81
11	131089800		Bracket-board, (2)				$ 50.83
12	131490000		Board-control, Motor				$ 78.76
15	131362500		Switch-temperature				$ 147.30
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131297306		Bracket-controls		Appelez-nous	-
18	131615300		Panel-control		Appelez-nous	-
20	131122710		End Cap,black ,lh				$ 94.19
21	134011703		Knob-timer,blk/blue   (Replaces: 131141000)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131485000		Harness-dryer		Appelez-nous	-
24	131111500		Knob-start Switch, Black				$ 13.55
27	131197000		Clip-control Panel				$ 13.62
31	131122700		End Cap,black ,rh				$ 104.90
38	131048300		Buzzer		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131391618		Panel-top, White		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46

    View Diagram in Separate Window       Print Part List
