SELECT A DIAGRAM

01 - Cover


02 - P16v0036 Dry Cab,heater


03 - P16d0019 Frnt Pnl,door

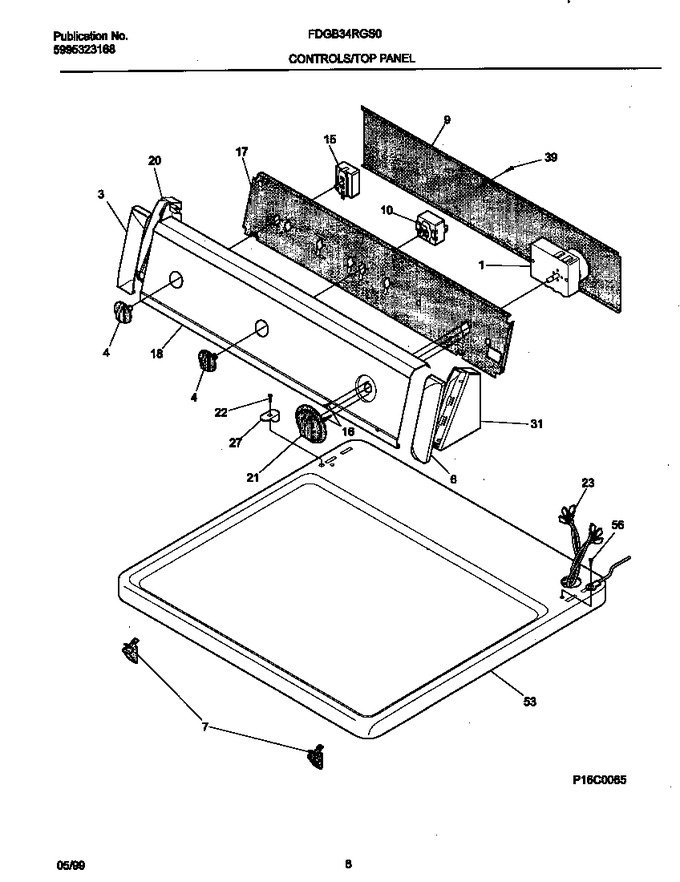

04 - P16c0065 Control Panel


05 - P16m0016 Motor,blower


06 - P16b0009 Burner Valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297139		Timer-dryer				$ 387.45
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
15	131243200		Switch-temp		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-controls		Appelez-nous	-
18	131836700		Trimplate Fde/b7wsjf-2		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	134011703		Knob-timer Wht/gray   (Replaces: 131790003)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131516700		Harness		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46

    View Diagram in Separate Window       Print Part List
