View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - P16v0036 Dry Cab,heater
03 - P16d0018 Front Panel,door
04 - P16c0068 Control Panel
05 - P16m0016 Motor,blower

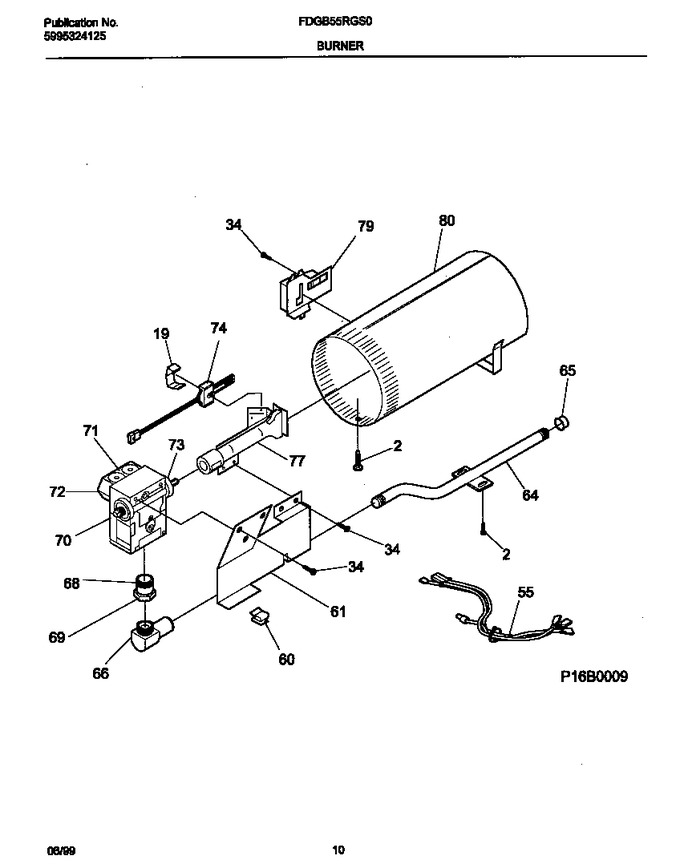

06 - P16b0009 Burner,valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 19 | 131715500 | Clip-igniter |
|
$ 9.22 | |||||
| 34 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 55 | 131748000 | Harness-gas Valve |
|
- | |||||
| 60 | 3281126 | Clip-wiring, Gas Bracket |
|
- | |||||
| 61 | 131418701 | Bracket-burner |
|
- | |||||
| 64 | 5303286873 | Pipe |
|
- | |||||
| 65 | 08015112 | Cap-pipe |
|
- | |||||
| 66 | 131512000 | Elbow-coupler |
|
- | |||||
| 68 | 5362791200 | Union-male Connector, Brass |
|
$ 52.98 | |||||
| 69 | 08015194 | Nut-union, Hex |
|
- | |||||
| 70 | 5303207409 | Valve Gas |
|
$ 433.76 | |||||
| 71 | 5303307291 | Coil-secondary |
|
- | |||||
| 72 | 5303307292 | Coil-booster |
|
- | |||||
| 73 | 5303207410 | Orifice, Natural Gas |
|
$ 80.09 | |||||
| 74 | 5303937186 | Ignitor Assy (Replaces: 5303281151) |
|
$ 80.61 | |||||
| 77 | 131762900 | Asmy-burner |
|
- | |||||
| 79 | 5303281135 | Sensor |
|
Immediately | $ 102.06 | ||||
| 80 | 3201240 | Tube-burner Assy |
|
- | |||||
| *14003 | 131776600 | Kit-lp |
|
- |
