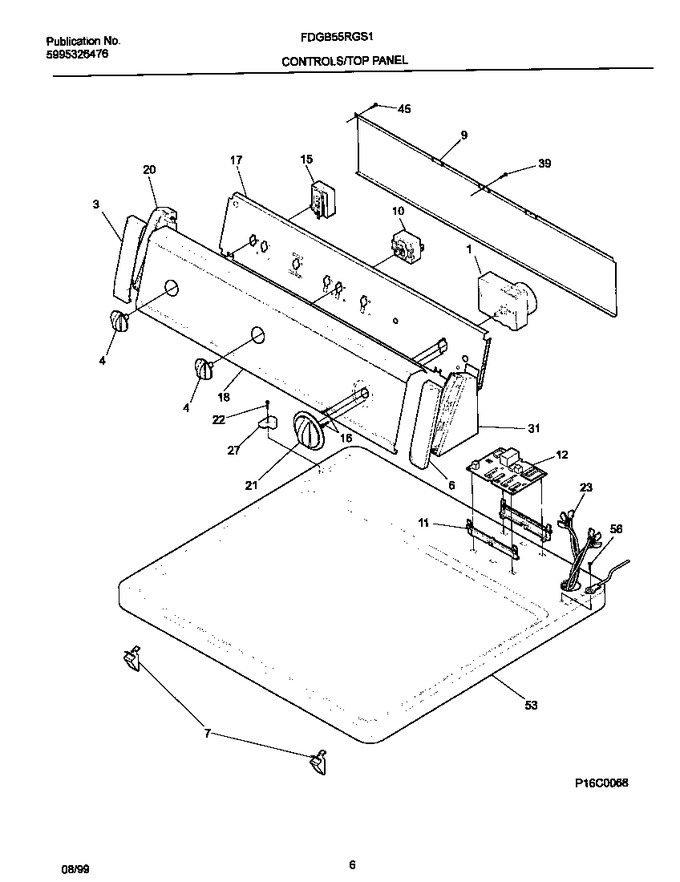

04 - P16c0068 Control Panel


05 - P16m0019 Motor,blower


06 - P16b0010 Burner,valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131579800		Timer-dryer				$ 607.18
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
11	131587400		Bracket-control Board,(2)				$ 44.40
12	131620200		Board-control,moisture Sensor		Appelez-nous	-
15	131641900		Switch-temperature		Appelez-nous	-
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-
18	131837000		Trimplate Fde/b7rrhf-5		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	134011703		Knob-timer Wht/gray   (Replaces: 131790003)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131633600		Harness-dryer		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
