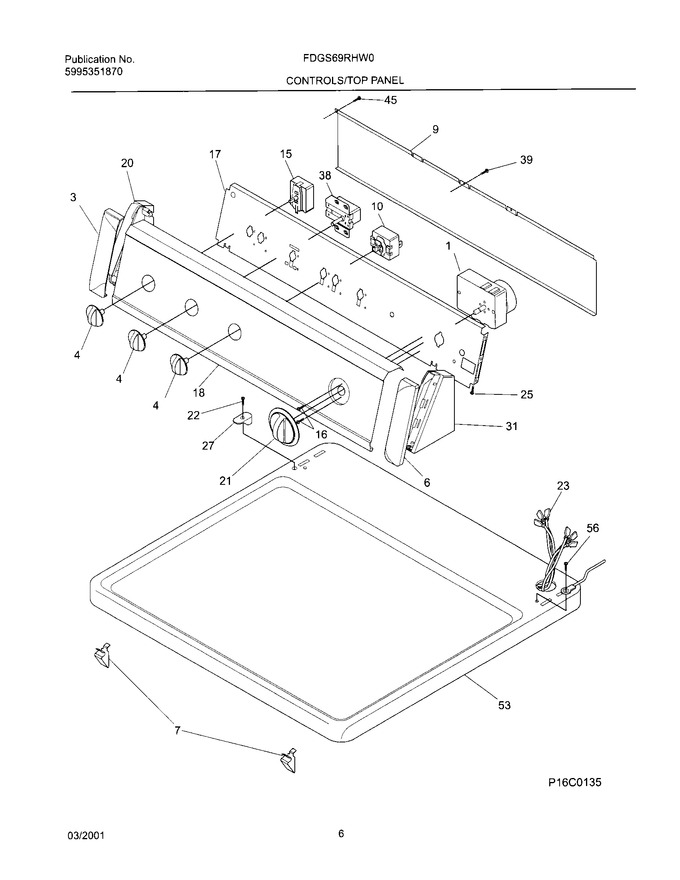

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer-dryer P Gas				$ 336.65
3	131122610		Cover-end Cap,black ,lh		Appelez-nous	-
4	131858004		Knob-rotary,blk/blue   (Replaces: 131141100)			Immediately	$ 55.29
6	131122600		Cover-end Cap,black ,rh		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141730		Backsheet		Appelez-nous	-
10	134398300		Switch-start   (Replaces: 131447800)			Immediately	$ 77.82
15	131048100		Switch, Temperature		Appelez-nous	-
16	134034300		Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming		Appelez-nous	-
17	131728900		Bracket-control		Appelez-nous	-
18	131988100		Trimplate Fde/b7prhf-2		Appelez-nous	-
20	131122710		End Cap,black ,lh				$ 94.19
21	134011703		Knob-dryer Timer   (Replaces: 134011700)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	134005300		Harn-fsd Prh Gas		Appelez-nous	-
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122700		End Cap,black ,rh				$ 104.90
38	131048300		Buzzer		Appelez-nous	-
39	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
NI	131663300		Harness-buzzer		Appelez-nous	-
