02 - Wrapper

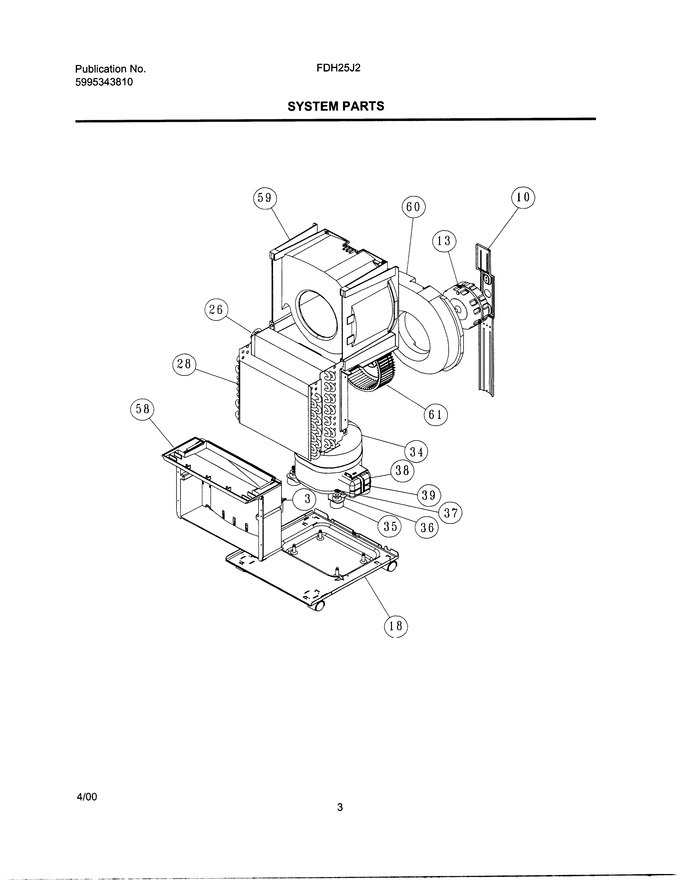

03 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5308016437		Switch-auto Shut Off, Bucket				$ 41.55
10	327362101		Bracket, Motor		Appelez-nous	-
13	327650409		Motor Fan-1 Speed		Appelez-nous	-
18	327660303		Base Plate, W/casters		Appelez-nous	-
26	327651601		Condenser & Evaporator In One		Appelez-nous	-
28	327651601		Condenser & Evaporator In One		Appelez-nous	-
34	327603702		Compressor		Appelez-nous	-
35	5303286606		Grommet		Appelez-nous	-
36	5303002664		Washer - Compressor		Appelez-nous	-
37	08006948		Nut-compressor		Appelez-nous	-
58	327660501		Coil Support/drip Tray		Appelez-nous	-
59	327660201		Scroll		Appelez-nous	-
60	327362001		Scroll Back		Appelez-nous	-
61	327360001		Blower Wheel		Appelez-nous	-
NI	08007481		Nut				$ 5.81
NI	327161302		Clamp-blower Wheel		Appelez-nous	-
NI	5304416308		Caster		Appelez-nous	-
NI	5304410096		Capillary Tube		Appelez-nous	-
NI	327160704		Harness-compressor		Appelez-nous	-
NI	5304416099		Overload				$ 51.61
NI	327101603		Cover-terminal		Appelez-nous	-
NI	327101503		Starting Relay-mtrp0051-02				$ 68.57
NI	5304416438		Cord Power		Appelez-nous	-
