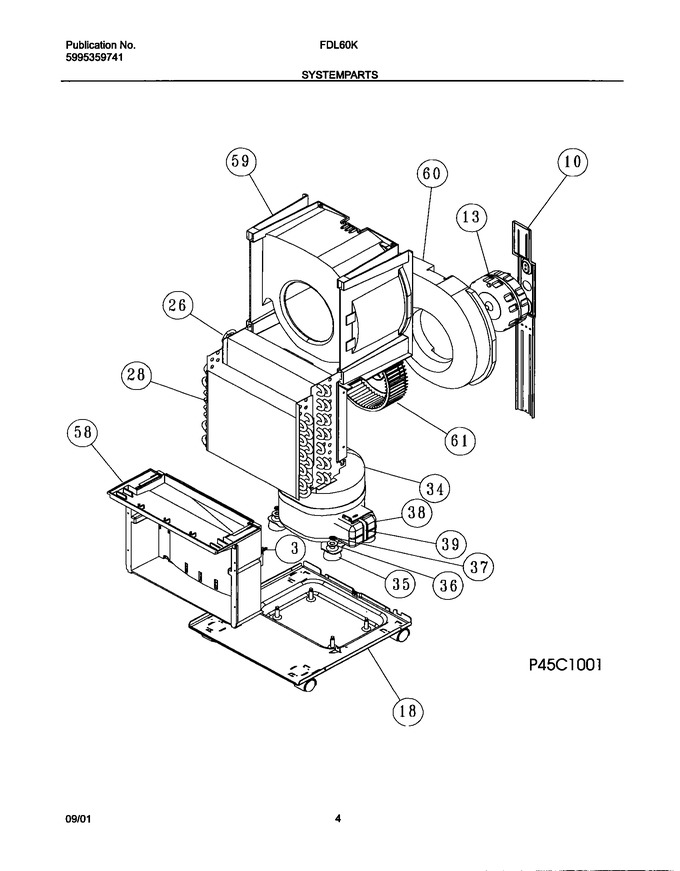

05 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
10	327362101		Bracket,motor Mtg		Appelez-nous	-
18	327661104		Base-stud Assy		Appelez-nous	-
28	327361401		Evaporator Assy		Appelez-nous	-
34	5304416101		Compressor		Appelez-nous	-
35	327160901		Grommet,compressor		Appelez-nous	-
37	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
38	5304416126		Cover-terminal,compressor		Appelez-nous	-
58	327660503		Coil Support/drip Tray		Appelez-nous	-
59	327660201		Scroll		Appelez-nous	-
60	327362001		Scroll-back Plate		Appelez-nous	-
61	327360001		Blower Wheel		Appelez-nous	-
F13	327650410		Motor-fan,2spd				$ 267.65
F26	327361005		Condenser Assy		Appelez-nous	-
F3	5308016437		Switch-auto Shut Off, Bucket				$ 41.55
NI	5304416102		Overload Protector		Appelez-nous	-
NI	08007481		Nut				$ 5.81
NI	5304416152		Caster,w/double Wheel		Appelez-nous	-
NI	5303291330		Gasket,terminal Cover		Appelez-nous	-
NI	5303294292		Nut-terminal Cover		Appelez-nous	-
NI	327364501		Scroll-seal Assy		Appelez-nous	-
NI	327161302		Clamp-blower		Appelez-nous	-
NI	327160719		Harness,1+2spd Lo Temp		Appelez-nous	-
NI	5303290357		Strainer		Appelez-nous	-
NI	5304416426		Cord-service		Appelez-nous	-
NI	309112701		Capacitor		Appelez-nous	-
