01 - Blower Assembly
02 - Burner Box Assembly

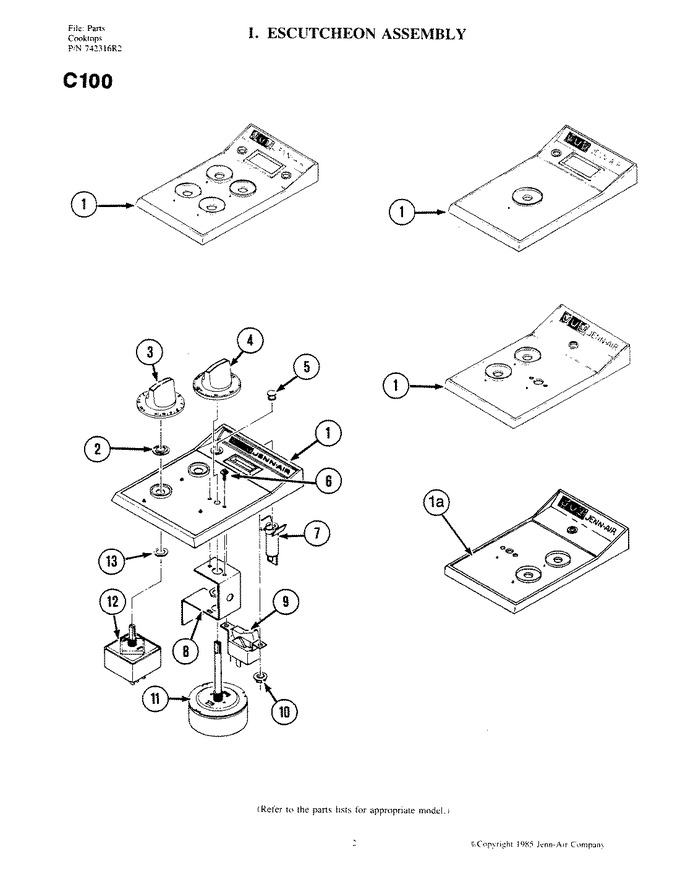

03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 700832 | Escutcheon Rt-stick On Logo | 1 |
|
- | ||||
| 1 | 700821 | Escutcheon (w/cast Logo) | 1 |
|
- | ||||
| 3 | WPY700854 | Knob, Switch (Replaces: Y700854) | 1 |
|
Immediately | $ 23.22 | |||
| 4 | 700941 | Knob, Timer | 1 |
|
- | ||||
| 5 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 1 |
|
$ 5.09 | ||||
| 6 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 7 | 715396 | Pilot Light & Lens | 1 |
|
- | ||||
| 8 | 715924 | Bracket, Timer | 1 |
|
- | ||||
| 9 | 715397 | Switch, Fan | 1 |
|
- | ||||
| 10 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 11 | 707732 | Timer | 1 |
|
- | ||||
| 12 | 700855K | Switch, Infinite (Replaces: Y700855) | 1 |
|
Immediately | $ 121.91 | |||
| 13 | Y700833 | O Ring | 1 |
|
- | ||||
| 13 | DE81-04437A | Wire Harness (Replaces: 700153) | 1 |
|
$ 100.49 | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
