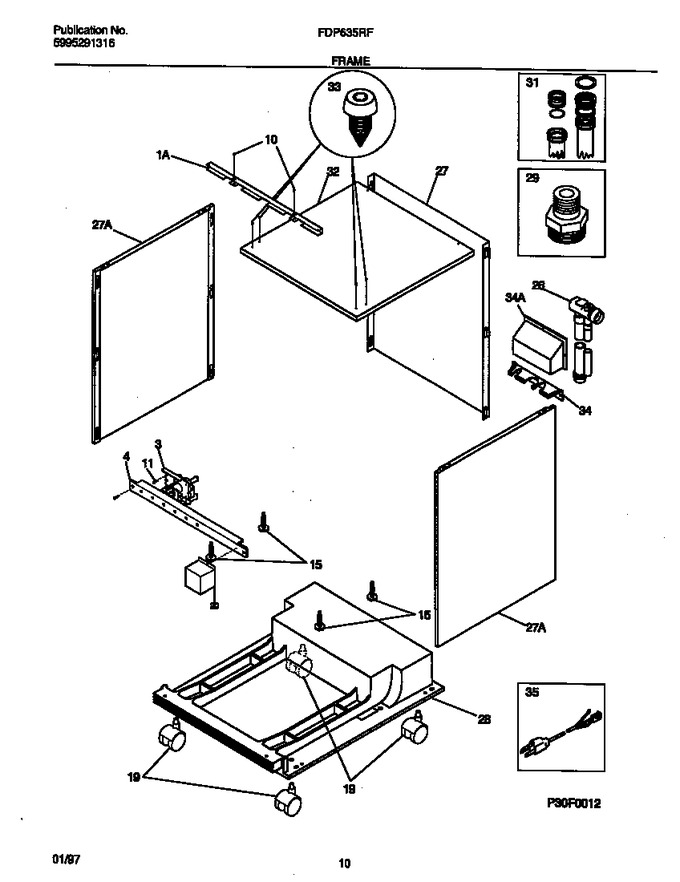

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154236101		Bracket,front Frame		Appelez-nous	-
3	154637401		Valve-water   (Replaces: 154219601)			Immediately	$ 21.36
4	5304508587		Brace-front   (Replaces: 154208701)				$ 28.92
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
19	154280201		Caster, 30				$ 49.51
20	154209601		Cover-junction Box				$ 39.80
26	154187105		Hose & Coupler Assy		Appelez-nous	-
27	154229601		Wrapper, Back		Appelez-nous	-
28	154282801		Base And Weight Assy		Appelez-nous	-
29	154242501		Adapter-water Valve				$ 83.53
31	5303304813		Faucet Adapter Assy		Appelez-nous	-
32	154241802		Top,gray		Appelez-nous	-
33	154241701		Screw, Top		Appelez-nous	-
34	154249701		Pocket,lower		Appelez-nous	-
34	154249801		Pocket,upper				$ 31.03
35	154253001		Cord-electric				$ 118.76
*94616	154025901		Screw, Truss Head, 10 X 0.625		Appelez-nous	-
*94617	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
*94618	154200601		Screw-10-16 X 3/8				$ 7.98
*94619	154242801		Screw, Phillips, 8-18 X 7/16		Appelez-nous	-
*94620	154280802		Cover-access		Appelez-nous	-
*94621	154287101		Clip,cover Access		Appelez-nous	-
*94622	5300804426		Clamp, Hose & Coupler		Appelez-nous	-
*94623	5300807373		Washer		Appelez-nous	-
*94624	5303319687		Screw, Truss Hd, 8-18 X 1/4``		Appelez-nous	-
27A	154229701		Panel, Side, Lh		Appelez-nous	-
27B	154229702		Panel, Side, Rh		Appelez-nous	-
