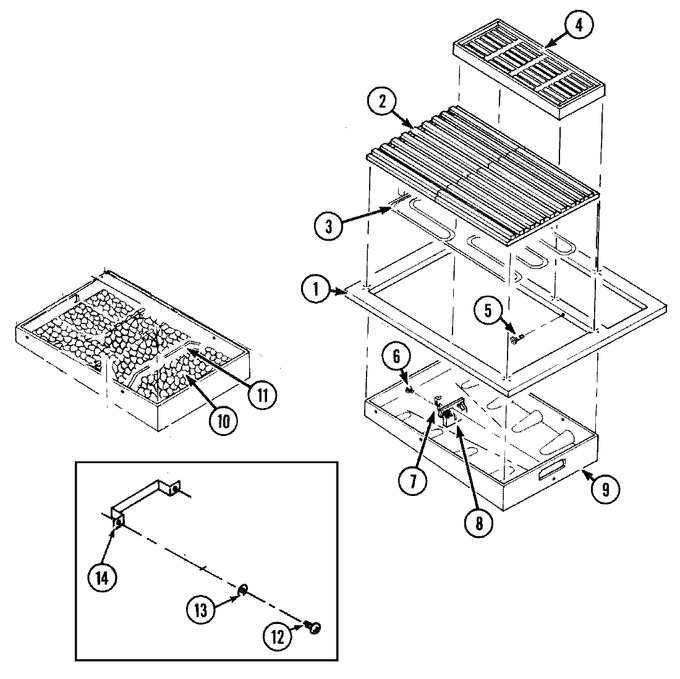

01 - Blower Plenum
02 - Burner Box
03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701850 | Top | 1 |
|
- | ||||
| 2 | 707886 | Grate | 1 |
|
- | ||||
| 3 | WP5700M426-60 | Element, Grill (Replaces: Y700452) | 1 |
|
$ 382.26 | ||||
| 4 | DE81-04768A | Grill, Air (Replaces: 700667) | 1 |
|
$ 109.33 | ||||
| 5 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 6 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 7 | 74004835 | Clip (Replaces: 715121) | 1 |
|
$ 11.37 | ||||
| 8 | Y715120 | Receptacle | 1 |
|
$ 24.18 | ||||
| 9 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 9 | Y701489 | Contact/wire Assy. (blu-rt) | 7 |
|
- | ||||
| 9 | Y701490 | Wire, Black | 1 |
|
- | ||||
| 9 | Y712203 | Wire, Violet | 7 |
|
- | ||||
| 9 | Y702042 | Kit, Wire | 1 |
|
- | ||||
| 9 | Y712197 | Wire, Brown | 7 |
|
- | ||||
| 9 | Y712014 | Wire, Yellow | 3 |
|
- | ||||
| 9 | Y712015 | Wire, Red | 3 |
|
- | ||||
| 9 | Y712017 | Wire, Black | 3 |
|
- | ||||
| 9 | Y712030 | Wire, Blue | 3 |
|
- | ||||
| 9 | 712033 | Kit, Wire | 3 |
|
- | ||||
| 9 | Y701953 | Pan, Grill (w/brackets) | 1 |
|
- | ||||
| 9 | Y701899 | Wire, Blue | 1 |
|
- | ||||
| 9 | Y712431 | Kit, Wire | 7 |
|
- | ||||
| 9 | Y701492 | Wire, Yellow | 1 |
|
- | ||||
| 9 | Y701491 | Wire, Red | 1 |
|
- | ||||
| 9 | Y712200 | Wire, Yellow | 7 |
|
- | ||||
| 10 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 11 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 12 | WP12990527 | Screw (Replaces: Y708955) | 7 |
|
Immediately | $ 7.15 | |||
| 12 | WP59002061 | Screw (Replaces: Y707172) | 3 |
|
$ 6.98 | ||||
| 13 | Y707664 | Washer | 3 |
|
- | ||||
| 14 | Y702698 | Bracket | 3 |
|
- |
