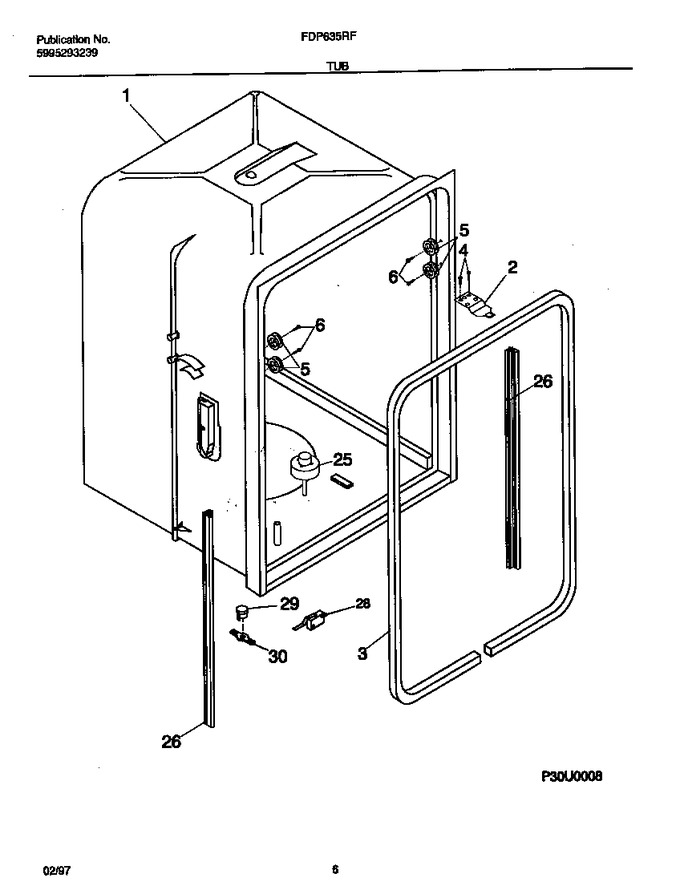

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154209301 | Tub Assy, W/frame Parts |
|
$ 453.86 | |||||
| 2 | 154662601 | Strike-door (Replaces: 154211601) |
|
Immediately | $ 39.69 | ||||
| 3 | 8581548276014 | Gasket-tub (Replaces: 154211801) |
|
Immediately | $ 26.30 | ||||
| 4 | 154041001 | Screw,plask 1 ,10-10 X 9/16 |
|
- | |||||
| 5 | 5304507405 | Roller-tub (Replaces: 154080001) |
|
Immediately | $ 25.79 | ||||
| 6 | 5303943103 | Screw W/washer,(8) |
|
Immediately | $ 17.72 | ||||
| 25 | 5304532207 | Float (Replaces: 154209701) |
|
Immediately | $ 6.89 | ||||
| 26 | 154242301 | Trim,tub Flange ,(2) |
|
$ 26.72 | |||||
| 28 | 154773201 | Bracket-float Switch (not Illustrated) (Replaces: 154209801) |
|
Immediately | $ 55.29 | ||||
| 28 | 154225501 | Switch,float |
|
$ 84.68 | |||||
| 29 | 154290204 | Thermostat, High Limit (Replaces: 154290203) |
|
Immediately | $ 64.49 | ||||
| 30 | 154241101 | Retainer,thermostat |
|
$ 3.62 | |||||
| 30 | 154297701 | Screw, Retainer-thermo (not Illustrated) |
|
$ 13.46 | |||||
| *38085 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| *38086 | 154641601 | Insulation, Blanket (Replaces: 154238303) |
|
$ 6.15 |
