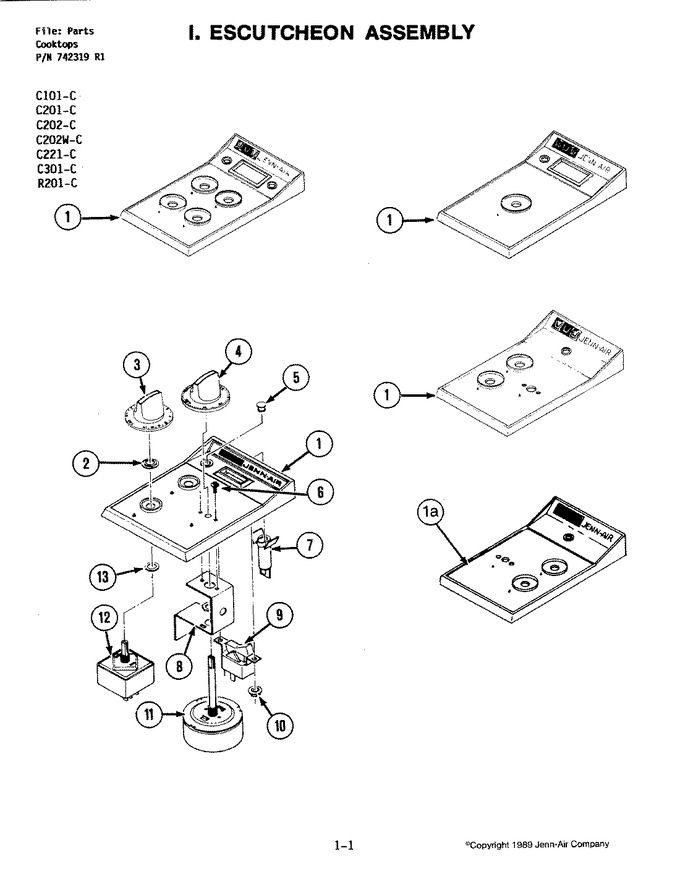

03 - Escutcheon Assembly (c101-c)
04 - Top Assembly (c101-c)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-04766A | Escutcheon (Replaces: 700665) | 1-2 |
|
$ 92.62 | ||||
| 1 | 700821 | Escutcheon (w/cast Logo) | 1-7 |
|
- | ||||
| 3 | 12200035 | Knob, Switch (Replaces: Y703662) | 7 |
|
Immediately | $ 78.40 | |||
| 3 | WPY700854 | Knob, Switch (Replaces: Y700854) | 1-2 |
|
Immediately | $ 23.22 | |||
| 3 | 12200035 | Knob, Switch (Replaces: Y703272) | 5-6 |
|
Immediately | $ 78.40 | |||
| 3 | DE81-09196A | Knob, Switch (Replaces: 702221) | 3-4 |
|
$ 267.18 | ||||
| 4 | Y702222 | Knob, Timer | 3-6 |
|
- | ||||
| 4 | Y703663 | Knob, Timer | 7 |
|
$ 21.03 | ||||
| 4 | 700941 | Knob, Timer | 1-2 |
|
- | ||||
| 5 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 1-7 |
|
$ 5.09 | ||||
| 6 | WP90767 | Screw (Replaces: 715773) | 1-7 |
|
Immediately | $ 7.04 | |||
| 7 | 715396 | Pilot Light & Lens | 1-7 |
|
- | ||||
| 8 | 715924 | Bracket, Timer | 1-7 |
|
- | ||||
| 9 | 715397 | Switch, Fan | 1-7 |
|
- | ||||
| 10 | 7103P166-60 | Palnut (Replaces: 715500) | 1-7 |
|
$ 15.91 | ||||
| 11 | 707732 | Timer | 1-7 |
|
- | ||||
| 12 | W11120795 | Switch, Infinite (Replaces: Y703147) | 6-7 |
|
Immediately | $ 84.20 | |||
| 12 | 700855K | Switch, Infinite (Replaces: Y700855) | 1-5 |
|
Immediately | $ 121.91 | |||
| 13 | Y700833 | O Ring | 1-7 |
|
- | ||||
| 13 | 712277 | Wire, Kit Escutcheon | 6-7 |
|
- | ||||
| 13 | 702020 | Wire, Kit Escutcheon | 1-5 |
|
- |
