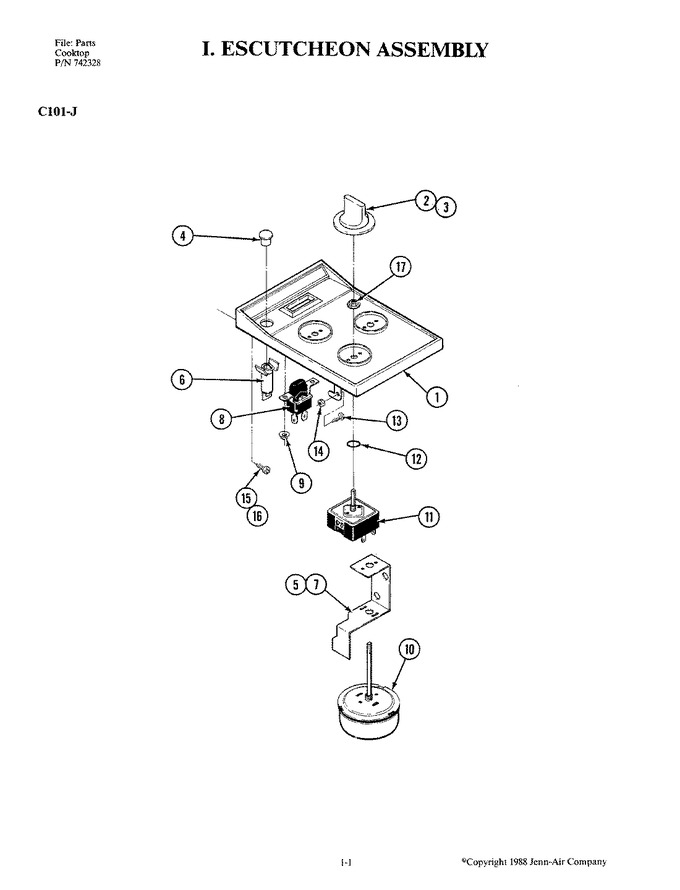

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box
03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-04766A | Escutcheon (Replaces: 700665) | 1 |
|
$ 92.62 | ||||
| 2 | 12200035 | Knob, Switch (Replaces: Y703662) | 1 |
|
Immediately | $ 78.40 | |||
| 3 | Y703663 | Knob, Timer | 1 |
|
$ 21.03 | ||||
| 4 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 1 |
|
$ 5.09 | ||||
| 5 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 6 | 715396 | Pilot Light & Lens | 1 |
|
- | ||||
| 7 | 715924 | Bracket, Timer | 1 |
|
- | ||||
| 8 | 704371 | Switch, Fan | 1 |
|
- | ||||
| 9 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 10 | 707732 | Timer | 1 |
|
- | ||||
| 11 | 703999 | Switch,infinite 200v | 1 |
|
- | ||||
| 12 | Y700833 | O Ring | 1 |
|
- | ||||
| 13 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 14 | WP488130 | Nut (Replaces: Y701396) | 1 |
|
$ 6.27 | ||||
| 15 | Y704630 | Screw | 1 |
|
- | ||||
| 16 | Y700834 | Clip | 1 |
|
- | ||||
| 17 | 712452 | Kit Escutcheon Wire | 1 |
|
- | ||||
| 17 | Y712255 | Palnut | 1 |
|
- |
