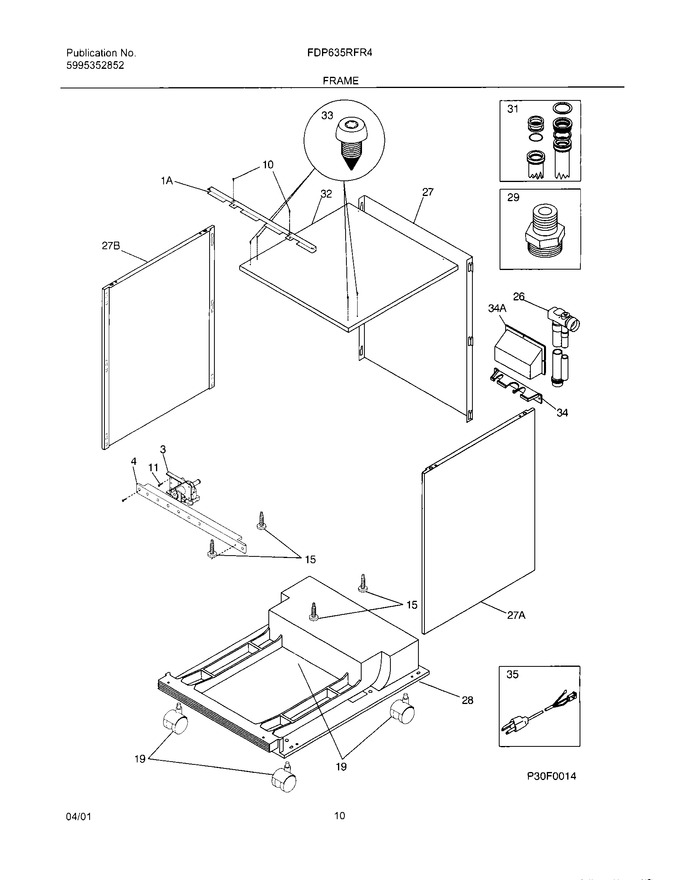

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154236101		Bracket,front Frame		Appelez-nous	-
3	154637401		Valve,water   (Replaces: 154359801)			Immediately	$ 21.36
4	5304508587		Brace-front   (Replaces: 154208701)				$ 28.92
10	154419403		Screw,8a X .375`` ,black   (Replaces: 5300808658)				$ 13.10
11	154200601		Screw-10-16 X 3/8				$ 7.98
15	154210901		Screw-leveling		Appelez-nous	-
19	154280201		Caster, 30				$ 49.51
26	154187105		Hose & Coupler Assy		Appelez-nous	-
27	154229702		Panel, Side, Rh		Appelez-nous	-
27	154229701		Panel,left Side		Appelez-nous	-
27	154229601		Wrapper, Back		Appelez-nous	-
28	154282801		Base And Weight Assy		Appelez-nous	-
29	154242501		Adapter-water Valve				$ 83.53
31	5303304813		Faucet Adapter Assy		Appelez-nous	-
32	154241802		Top,gray		Appelez-nous	-
33	154241701		Screw, Top		Appelez-nous	-
34	154249701		Pocket,lower		Appelez-nous	-
34	154249801		Pocket,upper				$ 31.03
35	154253001		Cord-electric				$ 118.76
NI	154323103		Cover-access		Appelez-nous	-
NI	154287101		Clip,cover Access		Appelez-nous	-
NI	154257901		Clip-cable		Appelez-nous	-
NI	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
NI	154242801		Screw, Phillips, 8-18 X 7/16		Appelez-nous	-
NI	154025901		Screw, Truss Head, 10 X 0.625		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
