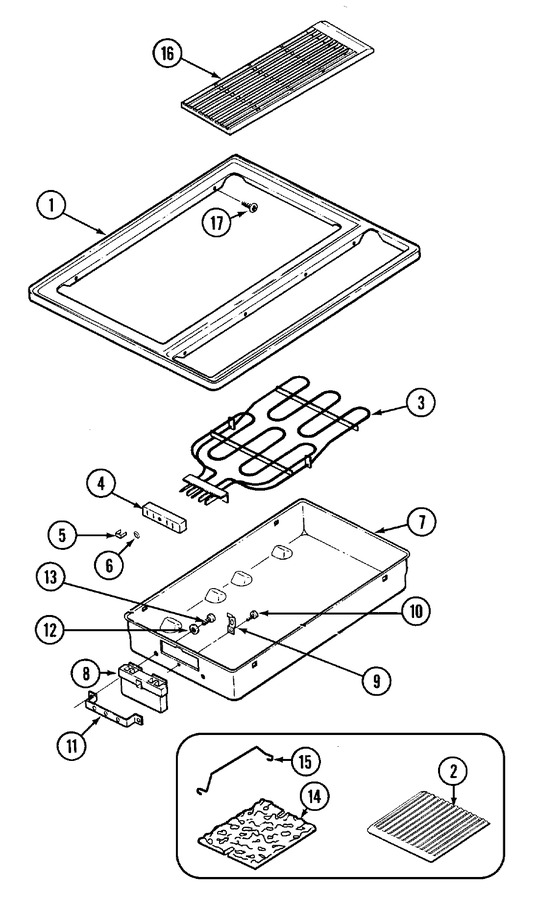

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box Assy.
03 - Control Panel
04 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701850 | Top | 1 |
|
- | ||||
| 2 | 707886 | Grate | 1 |
|
- | ||||
| 3 | Y700531 | Element Complete, 240v | 1 |
|
- | ||||
| 4 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 5 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 6 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 7 | Y712030 | Wire, Blue | 1 |
|
- | ||||
| 7 | Y712197 | Wire, Brown | 1 |
|
- | ||||
| 7 | Y712431 | Kit, Wire | 1 |
|
- | ||||
| 7 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 7 | Y712200 | Wire, Yellow | 1 |
|
- | ||||
| 7 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 9 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 10 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 11 | Y702698 | Bracket | 1 |
|
- | ||||
| 12 | Y707664 | Washer | 1 |
|
- | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 14 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 15 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 16 | DE81-04768A | Grill, Air (Replaces: 700667) | 1 |
|
$ 109.33 | ||||
| 17 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 |
