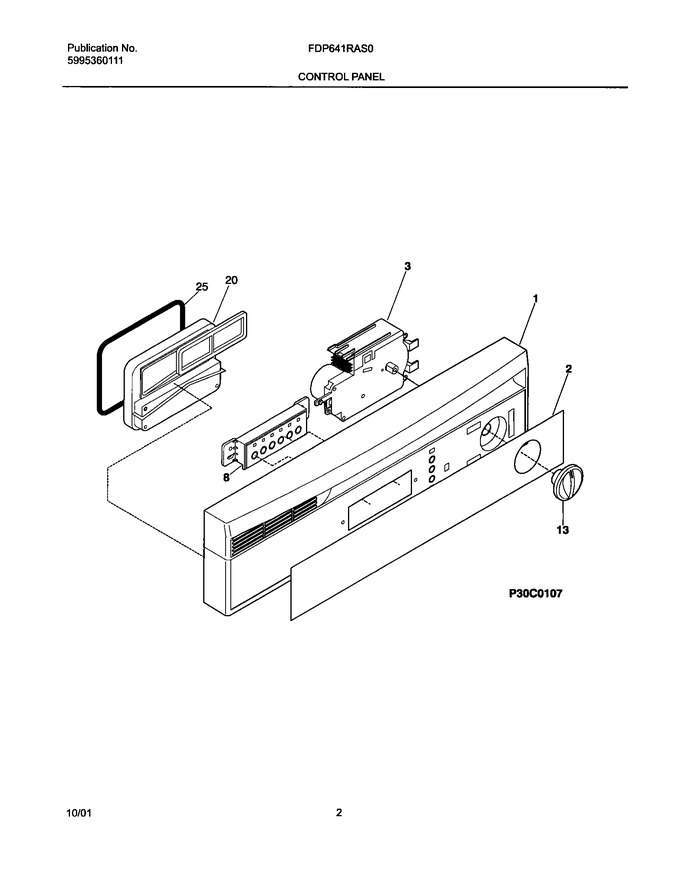

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368201		Panel-control,white		Appelez-nous	-
2	154403401		Insert,control Panel ,white		Appelez-nous	-
13	154239504		Knob-timer, White				$ 67.04
20	154327301		Vapor Chamber Assy		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
F3	154351102		Timer		Appelez-nous	-
F8	154373701		Switch-selector,6 Button		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154404601		Harness-wiring		Appelez-nous	-
NI	154248601		Shield,switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
