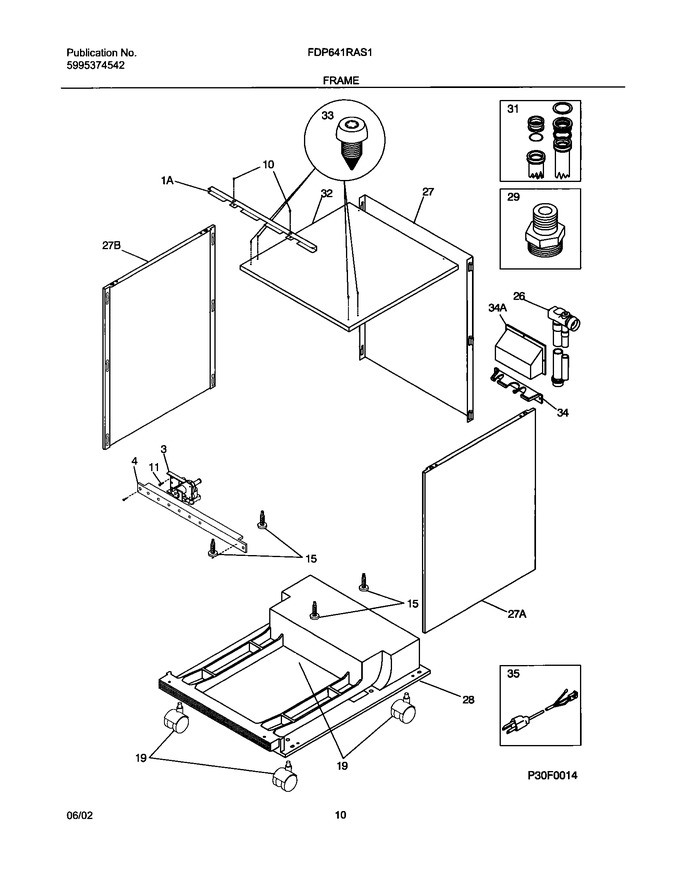

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	154637401		Valve,water   (Replaces: 154373301)			Immediately	$ 21.36
4	5304508587		Brace,front Frame   (Replaces: 154208701)				$ 28.92
10	154419403		Screw,no.8a X .375`` ,black   (Replaces: 5300808658)				$ 13.10
11	154320101		Screw,serr ,no.8-18 X 3/8		Appelez-nous	-
15	154419301		Screw,leveling				$ 17.17
19	154280201		Caster, 30				$ 49.51
27	154229601		Wrapper, Back		Appelez-nous	-
28	154282801		Base And Weight Assy		Appelez-nous	-
29	154242501		Adapter-water Valve				$ 83.53
31	5303304813		Faucet Adapter Assy		Appelez-nous	-
32	154405801		Top		Appelez-nous	-
33	154241701		Screw, Top		Appelez-nous	-
34	154249701		Pocket,lower		Appelez-nous	-
1A	154236101		Bracket,front Frame		Appelez-nous	-
27A	154229702		Panel, Side, Rh		Appelez-nous	-
27B	154229701		Panel,left Side		Appelez-nous	-
34A	154249801		Pocket,upper				$ 31.03
F26	154187107		Hose & Coupler Assy		Appelez-nous	-
F34A	154025901		Screw, Truss Head, 10 X 0.625		Appelez-nous	-
F35	154253001		Cord-electric				$ 118.76
NI	154323103		Cover-access		Appelez-nous	-
NI	154287101		Clip,cover Access		Appelez-nous	-
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	154200601		Screw,no.10-16 X 3/8				$ 7.98
NI	154242801		Screw, Phillips, 8-18 X 7/16		Appelez-nous	-
