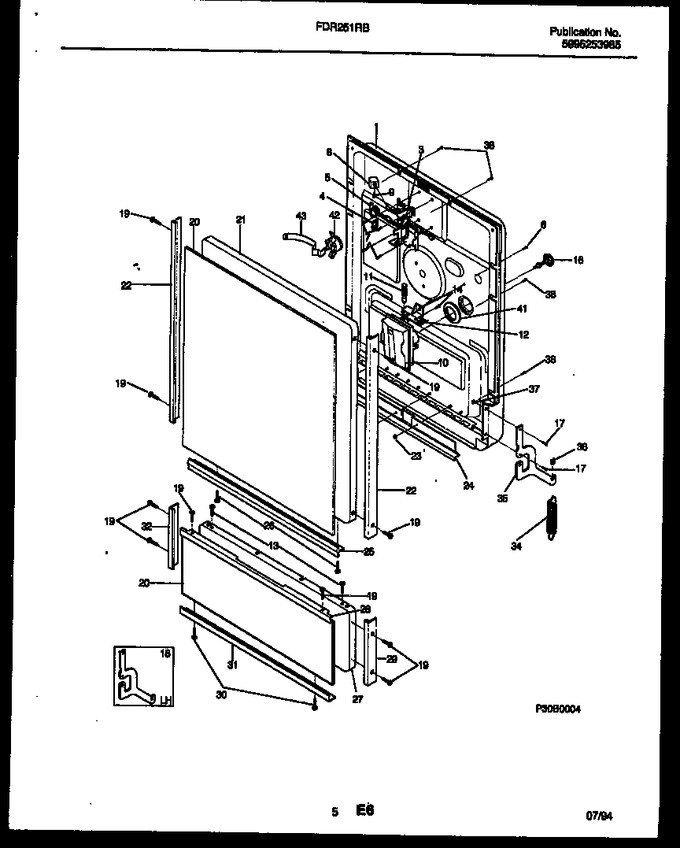

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809635		Door Assembly		Appelez-nous	-
3	5300809832		Latch Assembly		Appelez-nous	-
4	5300807450		Switch Cover		Appelez-nous	-
5	5300807043		Switch		Appelez-nous	-
6	5300809029		Screw No. 8a X 5/8`` Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
7	5300808618		Screw No. 6-32 X 1`` Lg. Hex Hd. Cad. Pl.		Appelez-nous	-
8	5300808712		Latch Knob				$ 31.71
9	5300808715		Screw No. 8-32 X 5/16`` Lg. 1/4`` Hex Washer Hd. Cad. Pl.		Appelez-nous	-
10	5300806753		Body Assembly				$ 69.93
11	5300809898		Plunger				$ 36.49
12	5300809782		Bi-metal Assembly				$ 47.51
13	154419403		Screw No. 8 X 3/8`` Lg. C.r. Hex Washer Hd., Black   (Replaces: 5300808658)				$ 13.10
14	5300807501		Screw No. 8 X 1/2`` Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
16	5300809916		Dispenser Fill Plug		Appelez-nous	-
17	5300803311		Screw No. 8 X 3/8`` Lg. Round Wafer Hd. Chr. Pl.		Appelez-nous	-
18	5300807539		Counterbalance Arm Assembly-lh				$ 7.88
19	5300809696		Screw No. 8 X 3/8`` Lg. Round Wafer Hd. Chr. Pl.		Appelez-nous	-
20	5300808923		Door & Access Panel Inserts-black/almond		Appelez-nous	-
21	5300808298		Door Panel- White		Appelez-nous	-
22	5303943080		Door Panel Trim-rh/lh Kit		Appelez-nous	-
23	5300809026		Speednut		Appelez-nous	-
24	5300809636		Baffle-seal		Appelez-nous	-
25	5303303652		Door Panel Trim Bottom		Appelez-nous	-
26	5300807501		Screw No. 8 X 1/2`` Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
27	5300808304		Access Panel, White		Appelez-nous	-
28	5300808471		Access Paneltop Trim				$ 27.35
29	5300809914		Access Panel Trim-rh		Appelez-nous	-
30	5300808749		Screw No. 8 X 5/8`` Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
31	154043802		Access Panel Trim-bottom				$ 50.24
32	5300809915		Access Panel Trim-lh		Appelez-nous	-
34	5300807601		Door Spring				$ 74.42
35	5300807538		Counterbalance Arm Assembly-rh		Appelez-nous	-
36	5300805884		Spring Pad		Appelez-nous	-
37	5300808470		Nut		Appelez-nous	-
38	5300809055		Screw No. 8 X 7/16`` Lg C.r. Truss Hd. St. St.				$ 1.21
41	5300805631		Dispenser Grommet				$ 6.29
42	5300808956		Thermostat				$ 3.78
43	5300809097		Retainer-thermostat		Appelez-nous	-
1A	5303292255		Ground-terminal Door Panel (non-illustrated)		Appelez-nous	-
