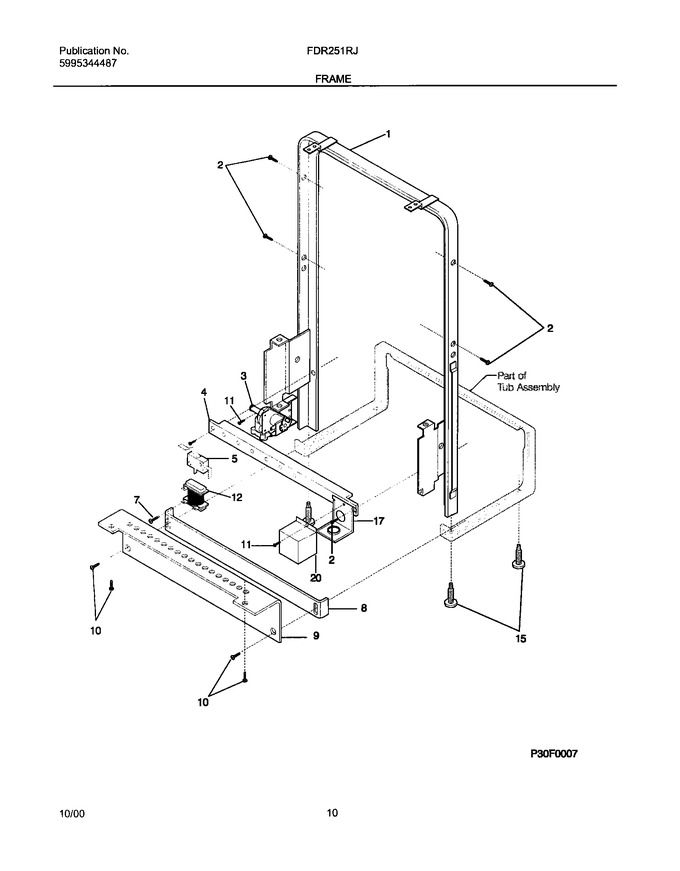

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154218801		Front Frame Assy		Appelez-nous	-
2	154041001		Screw		Appelez-nous	-
2	154200601		Screw,no.10-16 X 3/8				$ 7.98
4	154219101		Brace,front Frame		Appelez-nous	-
5	154773201		Bracket-float Switch   (Replaces: 154209801)			Immediately	$ 55.29
7	5300804672		Screw		Appelez-nous	-
8	154323602		Toeplate-adjustable		Appelez-nous	-
9	154323702		Toeplate		Appelez-nous	-
10	154419403		Screw   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw   (Replaces: 154200701)				$ 13.46
15	154210901		Screw-leveling		Appelez-nous	-
17	154112901		Bracket-junction Box		Appelez-nous	-
20	154128302		Cover-junction Box		Appelez-nous	-
F12	154380001		Relay,motor Start				$ 95.66
F3	154637401		Valve,water   (Replaces: 154359801)			Immediately	$ 21.36
F5	154225501		Switch,float				$ 84.68
NI	5300807270		Screw				$ 6.72

    View Diagram in Separate Window       Print Part List
