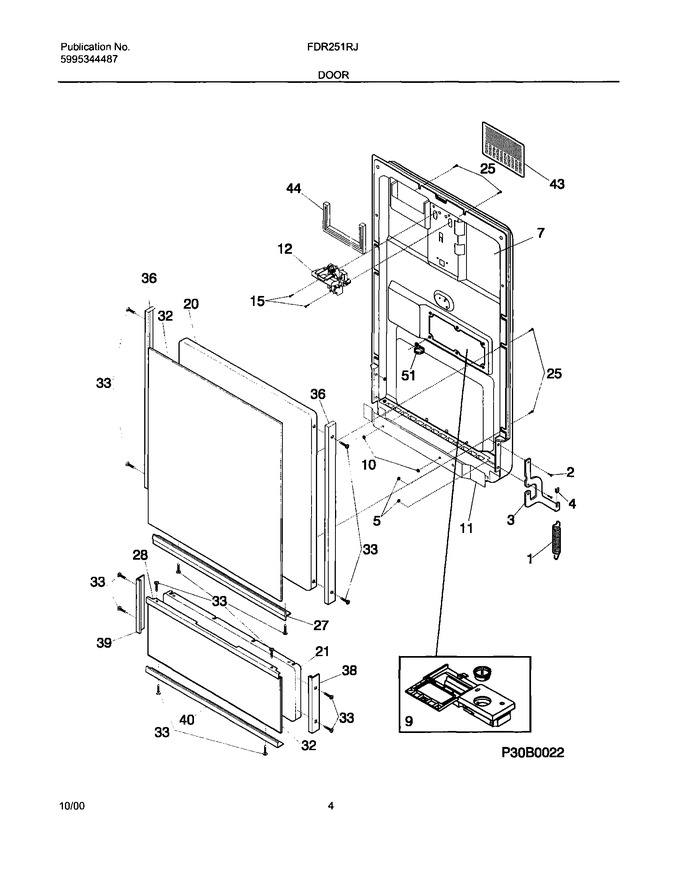

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154237401		Spring-door,(2)				$ 67.24
2	154093301		Screw,arm Assy ,(4)			Immediately	$ 2.12
3	5303270031		Arm Assembly				$ 79.75
3	154221401		Cover,arm Assy		Appelez-nous	-
3	5303298513		Pin,arm Assy				$ 39.98
4	5300805884		Pad-spring		Appelez-nous	-
5	154079601		Nut				$ 0.41
7	154352201		Door-inner Assy				$ 175.09
9	154294701		Screw, No.7 Plaas .375, (6), Disp. Assembly				$ 9.22
9	154574401		Dispenser,det/rinse Aid ,includes No.22   (Replaces: 154230101)			Immediately	$ 102.77
10	154026601		Speednut-baffle				$ 25.67
15	154103702		Screw-latch Mtg, (2)				$ 13.46
20	5303308615		Panel-door,galv				$ 77.65
21	5303318023		Panel-access,galv		Appelez-nous	-
25	5300809055		Screw				$ 1.21
27	5303303652		Door Panel Trim Bottom		Appelez-nous	-
28	5300808471		Access Paneltop Trim				$ 27.35
32	5303318022		Insert-door,wht/clr		Appelez-nous	-
32	5303318024		Insert-access,wht/clr				$ 36.96
32	5300808756		Insert-door/access,alm/blk				$ 120.17
33	5303318540		Screw-door Trim, Phillips, 8-18		Appelez-nous	-
36	5303943080		Door Panel Trim Lh & Rh		Appelez-nous	-
38	5303272124		Trim-access Panel,chrome ,rh				$ 46.41
39	5303272125		Trim-access Panel,chrome ,lh				$ 45.31
40	154043802		Trim-access, Chrome, Bottom				$ 50.24
43	154229301		Cover-vent				$ 33.08
43	154229401		Screw-vent Cover,(2)		Appelez-nous	-
44	154221001		Gasket,vent Cover				$ 43.47
51	154320301		Clamp,drip Loop ,wire				$ 62.69
F11	154221101		Baffle Seal				$ 78.12
F12	5304442175		Latch Assy,white   (Replaces: 154361201)			Immediately	$ 151.49
NI	154227808		Thermostat-temp Boost				$ 47.41
