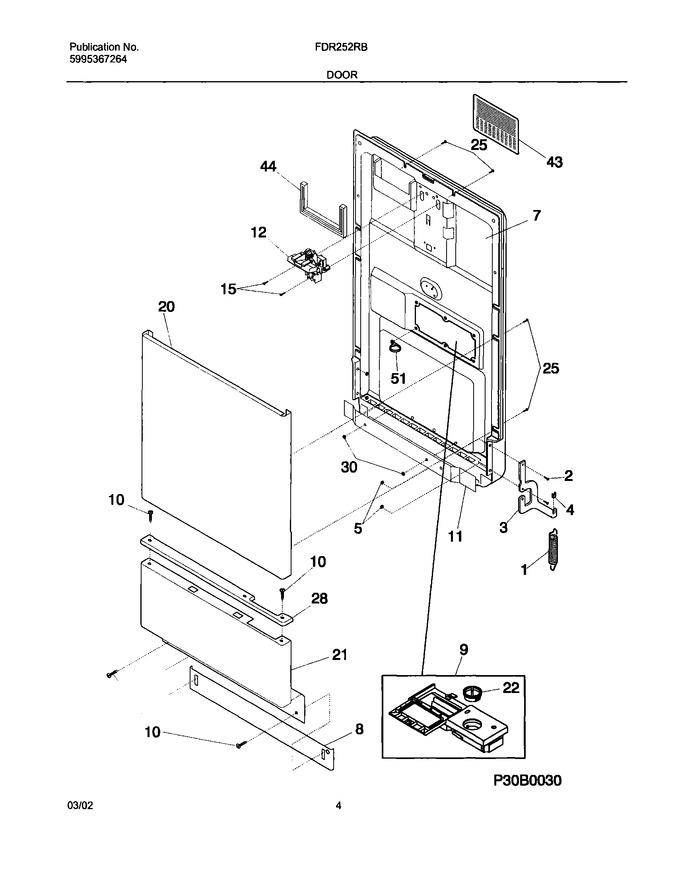

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154237401		Spring-door,(2)				$ 67.24
2	154093301		Screw,arm Assy ,(4)			Immediately	$ 2.12
3	5303270031		Arm Assy, Rh & Lh				$ 79.75
4	5300805884		Pad,door Spring		Appelez-nous	-
5	154079601		Nut,arm Assy ,(4)				$ 0.41
7	154352201		Door-inner Assy				$ 175.09
8	154411703		Toeplate,adjustable ,black		Appelez-nous	-
9	154574401		Dispenser,det/rinse Aid ,includes No.22   (Replaces: 154230101)			Immediately	$ 102.77
10	154419403		Screw,access Panel ,black				$ 13.10
15	154103702		Screw-latch Mtg, (2)				$ 13.46
20	154416103		Panel,outer Door Assy ,black				$ 89.36
21	154399503		Panel,access ,black		Appelez-nous	-
22	154388801		Cap,rinse Aid			Immediately	$ 26.03
28	154400303		Trim,access Panel ,black				$ 37.33
30	154026601		Speednut,door Baffle				$ 25.67
43	154229301		Cover-vent				$ 33.08
44	154221001		Gasket,vent Cover				$ 43.47
51	154320301		Clamp,drip Loop ,wire				$ 62.69
F11	154221103		Baffle,door ,black		Appelez-nous	-
F12	5304442175		Latch Assy,black   (Replaces: 154361203)			Immediately	$ 151.49
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	154229401		Screw-vent Cover,(2)		Appelez-nous	-
NI	5303298513		Pin,arm Assy				$ 39.98
NI	154221401		Cover,arm Assy		Appelez-nous	-
NI	154227808		Thermostat-temp Boost				$ 47.41
NI	154395501		Retainer,thermostat		Appelez-nous	-
