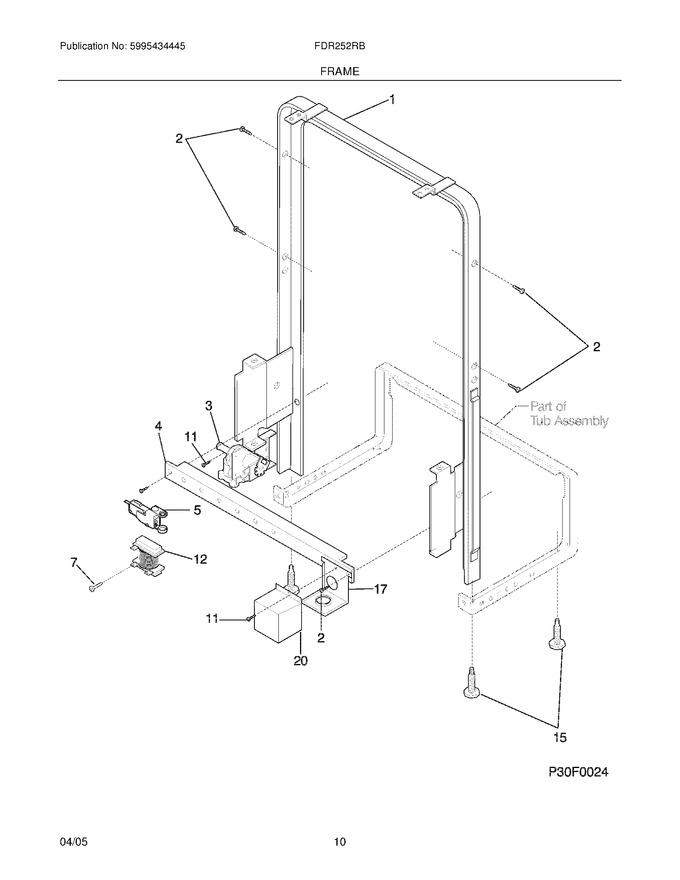

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154218801		Front Frame Assy		Appelez-nous	-
2	154200601		Screw,no.10-16 X 3/8				$ 7.98
4	154219101		Brace,front Frame		Appelez-nous	-
5	154773201		Switch Assy,float   (Replaces: 154408701)			Immediately	$ 55.29
7	5300804672		Screw,start Relay		Appelez-nous	-
11	134154100		Screw-no.10-32 X 3/8   (Replaces: 154200701)				$ 13.46
15	154419301		Screw,leveling				$ 17.17
17	154112901		Bracket-junction Box		Appelez-nous	-
20	154128304		Cover,junction Box		Appelez-nous	-
F12	154380001		Relay,motor Start				$ 95.66
F3	154476102		Valve,water				$ 140.25
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	5300807270		Screw,(2) ,countertop Mtg.				$ 6.72

    View Diagram in Separate Window       Print Part List
