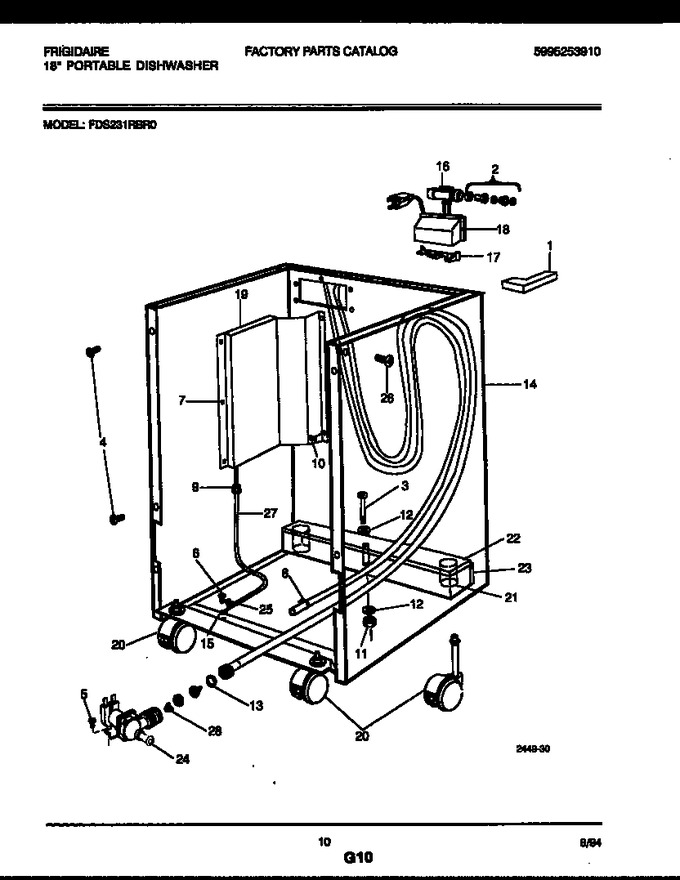

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154058901 | Block-tub Support |
|
- | |||||
| 2 | 5303271584 | Coupler-adaptor Assy |
|
- | |||||
| 3 | 5303293107 | Screw-weight Mtg. (3) |
|
- | |||||
| 4 | 5300806539 | Screw-tub Attach (4) |
|
- | |||||
| 5 | 5300807004 | Screw-water Valve (2) |
|
- | |||||
| 6 | 5300807951 | Screw-ground |
|
- | |||||
| 7 | 5300807612 | Speednut |
|
- | |||||
| 8 | 5300806090 | Clamp-hose |
|
- | |||||
| 9 | 5300807573 | Bushing-strain Relief |
|
- | |||||
| 10 | 5300807018 | Nut-clip (2) |
|
- | |||||
| 11 | 5300808661 | Nut-weight Mtg (3) |
|
- | |||||
| 12 | 5300808613 | Washer-weight Mounting. (6) |
|
- | |||||
| 13 | 5300800787 | Washer-hose |
|
- | |||||
| 14 | 5300808588 | Frame Assembly-almond |
|
- | |||||
| 15 | 5300807373 | Cup-washer-ground |
|
- | |||||
| 16 | 5303943044 | Hose & Coupler Assy |
|
- | |||||
| 17 | 5300807584 | Back Lower Pocket |
|
- | |||||
| 18 | 5300807585 | Back Upper Pocket |
|
- | |||||
| 19 | 5300807572 | Guide-cord |
|
- | |||||
| 20 | 5300809661 | Casters (4) |
|
- | |||||
| 21 | 154112401 | Weight-concrete |
|
- | |||||
| 22 | 154105001 | Pad-styro Foam |
|
- | |||||
| 23 | 154111801 | Spacer-pad |
|
- | |||||
| 24 | 154195301 | Valve, Water Inlet |
|
- | |||||
| 25 | 154123901 | Cap-plug |
|
- | |||||
| 26 | 5300809696 | Screw-cord Guard Pockets (9) |
|
- | |||||
| 27 | 5303293109 | Power Cord |
|
- | |||||
| 28 | 5300808469 | Flow Washer |
|
- | |||||
| 16A | 5303281610 | Wire-tie Hose (non-illustrated) |
|
- | |||||
| 1A | 154060001 | Pad-hose Protector (non-illustrated) |
|
- |
