Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154239101 Rack Assy-lower Appelez-nous -
2 5304509753 Basket,silverware   (Replaces: 5300808994) In-Stock Immediately $ 36.87

2 154200601 Screw-10-16 X 3/8 Special Order $ 7.98

2 154093301 Screw,arm Assy ,(4) In-Stock Immediately $ 2.12

2 154662601 Strike-door   (Replaces: 154211601) In-Stock Immediately $ 39.69

2 154359701 Bracket,heater ,(2) Appelez-nous -
2 154381103 Insert-control Pnl,black Appelez-nous -
3 154106202 Nut,heater ,(2)   (Replaces: 154106201) In-Stock Immediately $ 18.32

3 5304525235 Rack Assy-upper   (Replaces: 154239001) Special Order $ 356.99

3 5303270031 Arm Assy, Rh & Lh Special Order $ 79.75

4 5304535381 Wheel & Bracket Assy, Upper Rack   (Replaces: 5300809974) In-Stock Immediately $ 10.05

4 154200602 Screw,10-16 X 3/8 ,hex Special Order $ 10.21

4 5300805884 Pad-spring Appelez-nous -
4 154219101 Brace-front Appelez-nous -
5 5300809927 Cap,slide ,(4) In-Stock Immediately $ 3.69

5 154079601 Nut,arm Assy ,(4) Special Order $ 0.41

5 154333901 Roller-tub Appelez-nous -
6 5303943103 Screw W/washer,(8) In-Stock Immediately $ 17.72

6 154597801 Slide,rack ,(2)   (Replaces: 154232701) In-Stock Immediately $ 9.36

6 154025901 Screw, Truss Head, 10 X 0.625 Appelez-nous -
7 154352201 Door-inner Assy Special Order $ 175.09

7 5300804672 Screw-relay Appelez-nous -
7 5304532229 Wheel & Bracket Assy,lower Rack   (Replaces: 154174501) In-Stock Immediately $ 12.75

7 154365101 Macerator Special Order $ 36.28

9 154574401 Dispenser-det/rinse Aid,includes 22   (Replaces: 154230101) In-Stock Immediately $ 102.77

10 154200602 Screw,10-16 X 3/8 ,hex Special Order $ 10.21

10 154365302 Cover-volute   (Replaces: 154365301) Special Order $ 19.76

10 154026601 Speednut-baffle Special Order $ 25.67

11 5300809036 Lens-light Special Order $ 20.90

11 154294701 Screw,7 Plas .375 ,(6) ,disp. Assy. Special Order $ 9.22

11 154225203 Shelf-cup Appelez-nous -
12 154365401 Impeller-lower Special Order $ 36.01

12 154352401 Bracket-shelf Cup Appelez-nous -
12 154236501 Pushbutton,black Special Order $ 56.96

13 154239503 Knob-timer,black Special Order $ 44.52

14 154364801 Housing-pump Appelez-nous -
15 154103702 Screw-latch Mtg, (2) Special Order $ 13.46

15 154210901 Screw-leveling Appelez-nous -
16 154292701 Frame-rear,assy Appelez-nous -
16 154246502 Retainer, Sump In-Stock Immediately $ 40.40

19 154280201 Caster, 30 Special Order $ 49.51

19 5300809902 Inlet-water Special Order $ 76.86

20 5303308615 Panel-door,galv Special Order $ 77.65

21 5303318023 Panel-access,galv Appelez-nous -
22 154388801 Cap,rinse Aid In-Stock Immediately $ 26.03

22 154200201 Screw-pump Housing Appelez-nous -
22 5304523457 Tubing-water Inlet   (Replaces: 154239801) In-Stock Immediately $ 14.03

23 5304538466 Clamp-tubing,(2)   (Replaces: 5303318539) Special Order $ 2.31

23 154234301 Nut-spray Arm Special Order $ 51.32

24 154219201 Spray Arm-lower Special Order $ 196.77

25 5300809055 Screw, Cr Truss S.s., 8 .438 Special Order $ 1.21

26 154242302 Trim-tub Flange,rh Appelez-nous -
26 154242303 Trim-tub Flange,lh Appelez-nous -
27 154229602 Wrapper,white ,back Appelez-nous -
27 154377501 Screw-upper Impeller Special Order $ 9.19

27 5303303652 Trim-door,chrome ,bottom Appelez-nous -
28 154370601 Impeller-upper Special Order $ 6.04

28 154242402 Base And Weight Assy Appelez-nous -
28 5300808471 Trim-access Top,chrome Special Order $ 27.35

29 154242501 Adapter-water Valve Special Order $ 83.53

31 5303304813 Faucet Adapter Assy Appelez-nous -
32 154241804 Top,gray Appelez-nous -
32 5300808756 Insert-door/access,alm/blk Special Order $ 120.17

32 5303318022 Insert-door,wht/clr Appelez-nous -
32 5303318024 Insert-access,wht/clr Special Order $ 36.96

33 154241701 Screw, Top Appelez-nous -
33 5303318540 Screw-door Trim, Phillips, 8-18 Appelez-nous -
34 154249701 Pocket,lower Appelez-nous -
34 154064901 Washer-insulating Special Order $ 8.14

35 154200901 Screw-motor Mtg Special Order $ 14.39

36 5303943080 Trim-door,chrome ,rh & Lh Appelez-nous -
36 154381001 Sleeve & Seal Assy. Appelez-nous -
38 154367402 Diffuser In-Stock Immediately $ 79.38

38 5303272124 Trim-access Panel,chrome ,rh Special Order $ 46.41

39 5303272125 Trim-access Panel,chrome ,lh Special Order $ 45.31

40 154043802 Trim-access, Chrome, Bottom Special Order $ 50.24

42 154365601 Gasket-pump Special Order $ 52.76

43 154229301 Cover-vent Special Order $ 33.08

44 154221001 Gasket,vent Cover Special Order $ 43.47

44 154122502 Base-tower Special Order $ 38.90

45 154122601 Middle-tower Special Order $ 55.07

46 154122701 Tip-tower Appelez-nous -
51 154320301 Clamp-wire,drip Loop Special Order $ 62.69

52 154365201 Cover,pump Housing Special Order $ 4.46

12A 154365501 Slinger-pump Special Order $ 33.23

1A 154236102 Bracket-front Frame Appelez-nous -
27A 154229702 Panel, Side, Rh Appelez-nous -
27B 154229701 Panel,left Side Appelez-nous -
34A 154249801 Pocket,upper Special Order $ 31.03

F11 154221101 Baffle Seal Special Order $ 78.12

F12 5304442175 Latch Assy,black   (Replaces: 154361203) In-Stock Immediately $ 151.49

F12 154380001 Relay-motor Special Order $ 95.66

F15 154367701 Check Valve Special Order $ 31.92

F18 154384301 Motor Appelez-nous -
F25 5304532207 Float   (Replaces: 154209701) In-Stock Immediately $ 6.89

F26 154187106 Hose & Coupler Assy Special Order $ 347.76

F3 8581548276014 Gasket-tub   (Replaces: 154219501) In-Stock Immediately $ 26.30

F3 154376202 Timer Special Order $ 57.91

F3 154637401 Valve,water   (Replaces: 154359801) In-Stock Immediately $ 21.36

F35 154253001 Cord-electric Special Order $ 118.76

F5 154225501 Switch,float Special Order $ 84.68

F8 154220401 Switch-selector,5 Button Appelez-nous -
NI 154200601 Screw-10-16 X 3/8 Special Order $ 7.98

NI 154229401 Screw-vent Cover,(2) Appelez-nous -
NI 154227808 Thermostat-temp Boost Special Order $ 47.41

NI 154294701 Screw,7 Plas .375 ,(6) ,disp. Assy. Special Order $ 9.22

NI 218781101 Screw-8-18 X 5/8   (Replaces: 154026501) Special Order $ 15.60

NI 154641601 Insulation, Tub   (Replaces: 154238301) Special Order $ 6.15

NI 154289801 Shield-heater Terminal Special Order $ 7.33

NI 5303298513 Pin-arm Special Order $ 39.98

NI 154221401 Cover-arm Appelez-nous -
NI 154377601 Harness-wiring Appelez-nous -
NI 5300809144 Shield - Wire Appelez-nous -
NI 154779601 Screw,mtg.   (Replaces: 5303318719) Special Order $ 1.42

NI 154242201 Shield-switch Appelez-nous -
NI 154611101 Clamp-hose,(2)   (Replaces: 154106801) Special Order $ 12.05

NI 154773201 Bracket-float Switch   (Replaces: 154209801) In-Stock Immediately $ 55.29

NI 154243201 Clip,(2) Appelez-nous -
NI 154257901 Clip-cable Appelez-nous -
NI 154041001 Screw,plask 1 ,10-10 X 9/16 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

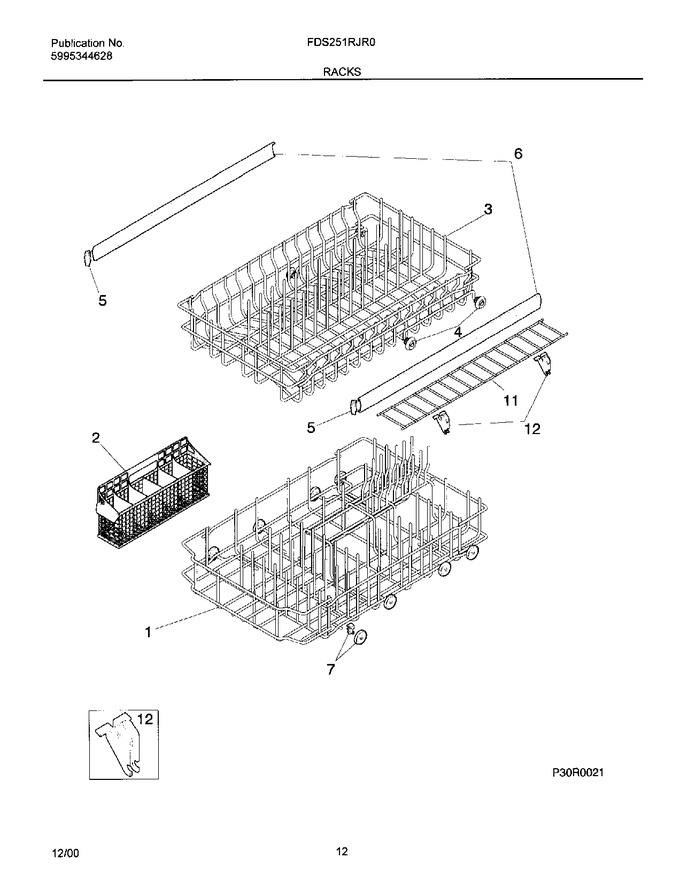

Diagram for FDS251RJR0
