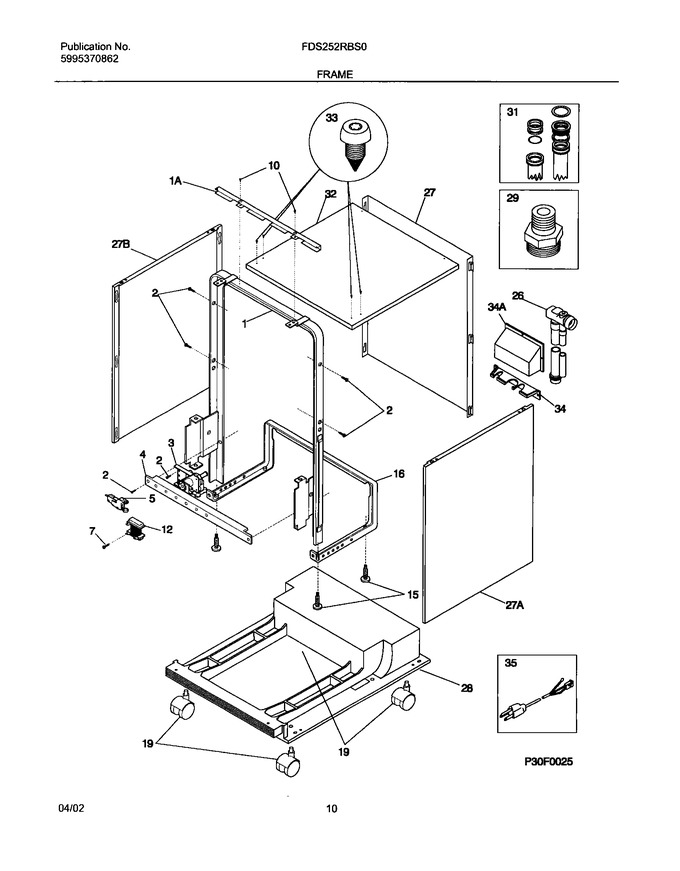

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154218801		Front Frame Assy		Appelez-nous	-
2	154200601		Screw,no.10-16 X 3/8				$ 7.98
3	154637401		Valve,water   (Replaces: 154373301)			Immediately	$ 21.36
4	154219101		Brace,front Frame		Appelez-nous	-
5	154773201		Switch Assy,float   (Replaces: 154408701)			Immediately	$ 55.29
7	5300804672		Screw,start Relay		Appelez-nous	-
10	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21
15	154210901		Screw-leveling		Appelez-nous	-
16	154292701		Frame,assy ,rear		Appelez-nous	-
19	154280201		Caster, 30				$ 49.51
27	154229602		Wrapper,white ,back		Appelez-nous	-
28	154242402		Base And Weight Assy		Appelez-nous	-
29	154242501		Adapter-water Valve				$ 83.53
31	5303304813		Faucet Adapter Assy		Appelez-nous	-
32	154405802		Top		Appelez-nous	-
33	154241701		Screw, Top		Appelez-nous	-
34	154249701		Pocket,lower		Appelez-nous	-
1A	154236102		Bracket-front Frame		Appelez-nous	-
27A	154229702		Panel, Side, Rh		Appelez-nous	-
27B	154229701		Panel,left Side		Appelez-nous	-
34A	154249801		Pocket,upper				$ 31.03
F12	154380001		Relay,motor Start				$ 95.66
F26	154187106		Hose & Coupler Assy				$ 347.76
F34A	154025901		Screw, Truss Head, 10 X 0.625		Appelez-nous	-
F35	154253001		Cord-electric				$ 118.76
NI	154243201		Clip,(2)		Appelez-nous	-
NI	154257901		Clip-cable		Appelez-nous	-
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
