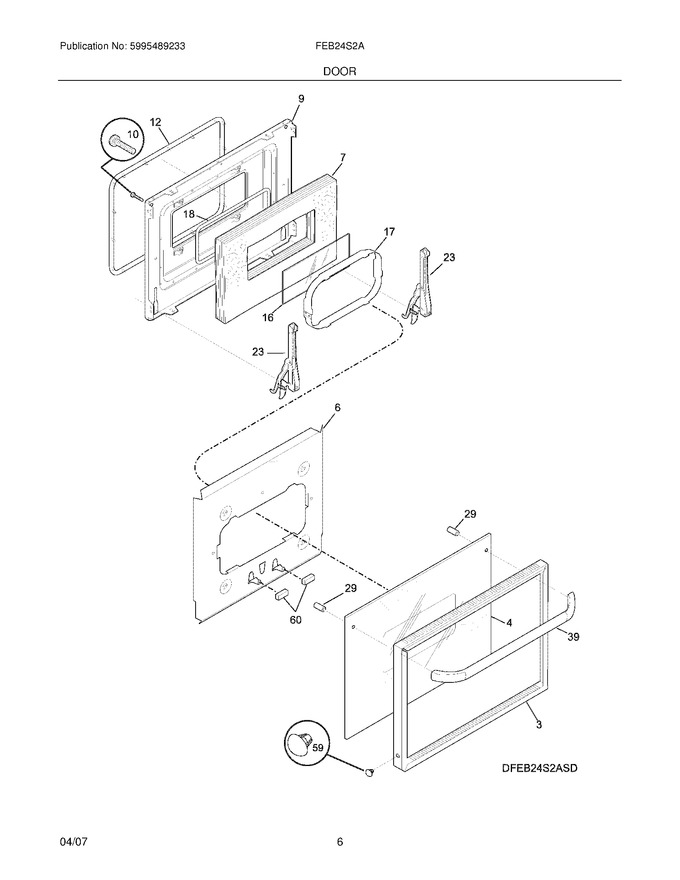

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026520		Trim-oven Door,black		Appelez-nous	-
4	318051516		Glass,oven Door ,black ,outer				$ 196.85
6	318073600		Shield-air Wash		Appelez-nous	-
7	318285037		Insulation,oven Door		Appelez-nous	-
9	318156604		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
16	5303323828		Glass-oven Door		Appelez-nous	-
17	318162601		Support,glass		Appelez-nous	-
18	318053204		Seal,rope ,lower Oven				$ 63.05
23	318024702		Hinge,oven Door ,lower Oven		Appelez-nous	-
29	318014403		Spacer,door		Appelez-nous	-
39	318362822		Handle Assembly,door ,black ,w/spacer				$ 104.05
59	3202113		Plug,button		Appelez-nous	-
60	5303316982		Foam Seal,(2)		Appelez-nous	-
F12	5303316768		Seal-oven Door, Lower Oven		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
