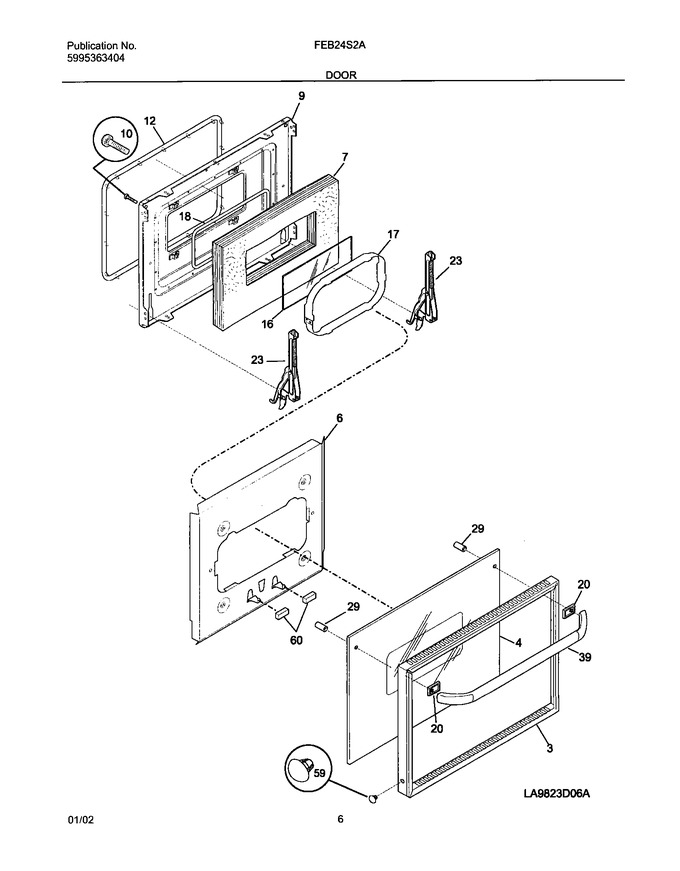

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026102		Trim-oven Door,white		Appelez-nous	-
4	318210907		Glass,oven Door ,white ,outer		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	318133740		Insulation,oven Door		Appelez-nous	-
9	318156604		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
16	318211700		Glass,oven Door ,inner		Appelez-nous	-
17	318162601		Support,glass		Appelez-nous	-
18	318053204		Seal,rope ,lower Oven				$ 63.05
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	318024702		Hinge,oven Door		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
39	316091104		Handle-door, White, Oven		Appelez-nous	-
59	3202113		Plug,button		Appelez-nous	-
60	5303316982		Foam Seal,(3)		Appelez-nous	-
F12	5303316768		Seal-oven Door		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
