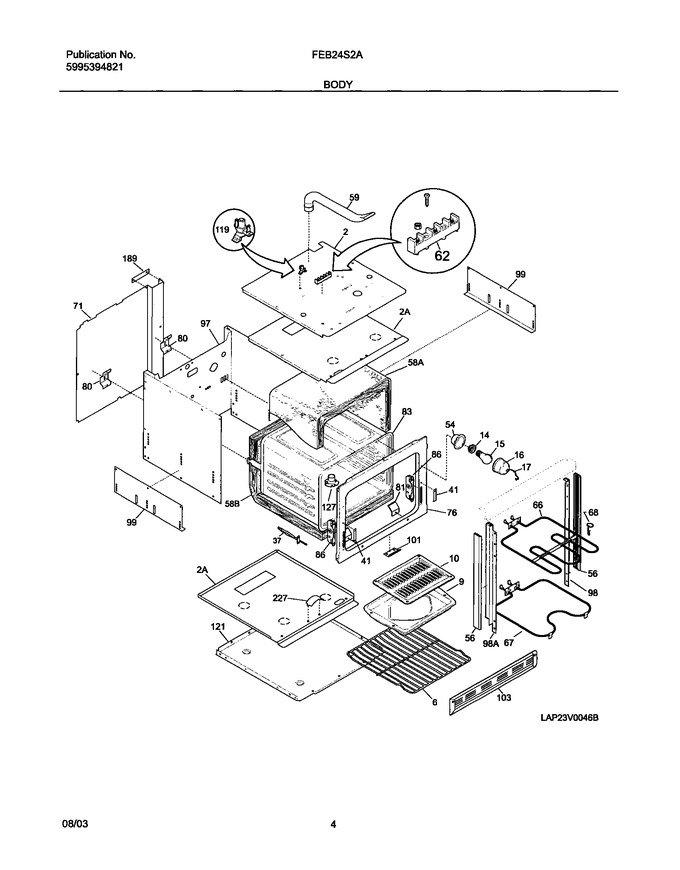

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318195900		Wrapper,outer ,top		Appelez-nous	-
6	318345216		Rack-oven   (Replaces: 5303296873)				$ 103.90
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	5303302711		Trim-bodyside, White		Appelez-nous	-
59	318072507		Tube,oven Vent		Appelez-nous	-
66	5303322963		Element-broil		Appelez-nous	-
68	5304403015		Support,element Hanger				$ 35.04
71	318071111		Shield-rear Wall		Appelez-nous	-
76	318056124		Front,oven		Appelez-nous	-
80	318192400		Spring,oven				$ 312.53
81	5303323710		Bracket-oven		Appelez-nous	-
83	318089520		Liner,oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
97	318066602		Wrapper,back & Sides		Appelez-nous	-
98	318029342		Trim,side ,inner,rh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
101	318039512		Bracket-trim,white		Appelez-nous	-
103	318028711		Trim-base, White				$ 134.77
121	318145001		Wrapper-base		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
189	318042500		Plate,retainer		Appelez-nous	-
227	5303323955		Clip-retainer		Appelez-nous	-
2A	5303305035		Shield, Insulation		Appelez-nous	-
58A	318133710		Insulation,oven Wrapper		Appelez-nous	-
58B	318133704		Insulation,oven Back		Appelez-nous	-
98A	318029343		Trim,side ,inner,lh		Appelez-nous	-
F119	318003605		Thermostat,safety ,backguard				$ 178.61
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
F67	5303323865		Element-bake		Appelez-nous	-
NI	318078528		Box & Wires Assy		Appelez-nous	-
NI	3015722		Clip-wire		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303324184		Screw-8 X 5/16			Immediately	$ 14.18
NI	5303935083		Screw 10-16x1-1/4				$ 9.19
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
