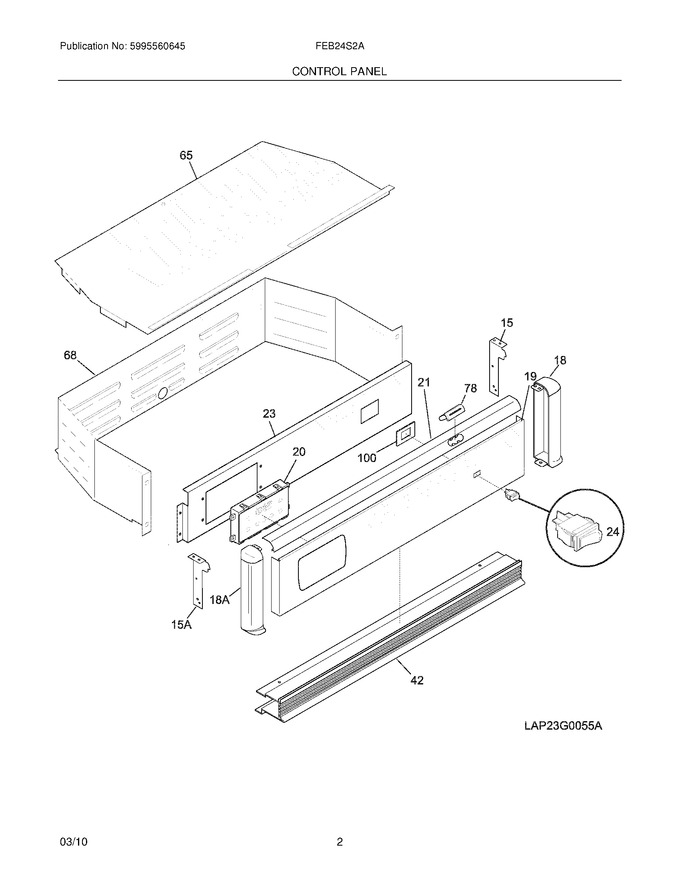

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318234131		Panel,control ,white		Appelez-nous	-
21	5303320425		Trim-top, White		Appelez-nous	-
23	318015036		Bracket,clock/timer Mtg		Appelez-nous	-
42	318027517		Trim,vent ,white				$ 179.92
65	318038804		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
78	318037122		Cover,oven Vent ,white				$ 56.33
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
15A	5303302287		Support-backguard, Lh		Appelez-nous	-
18A	5303311209		End Cap, White, Lh		Appelez-nous	-
F20	318185347		Clock/timer,eoc ,white ,es100		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318213812		Overlay,clock ,white ,es100		Appelez-nous	-
