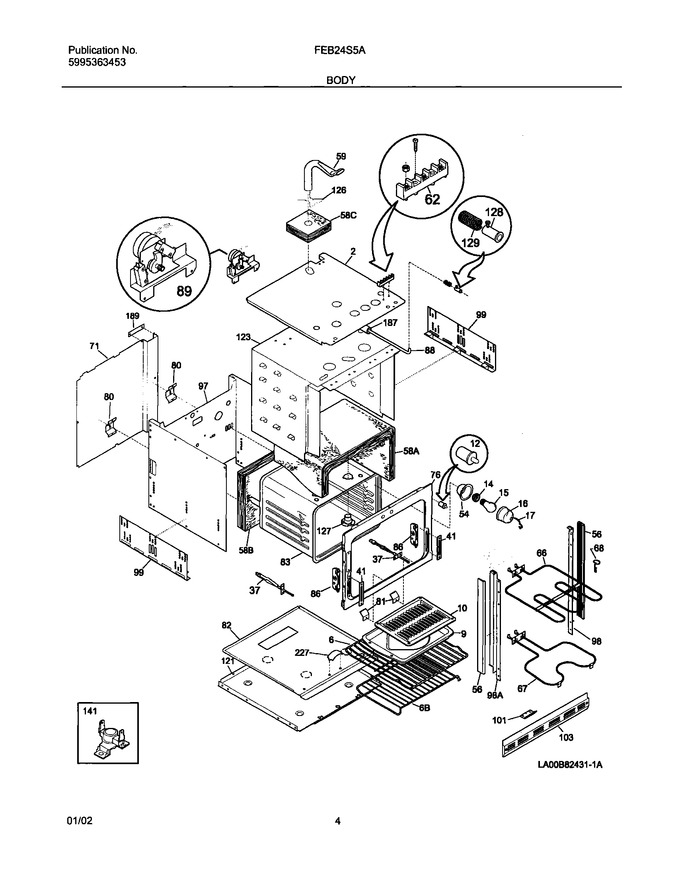

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318195900 | Wrapper,outer ,top |
|
- | |||||
| 6 | 5303299366 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch,oven Light ,door Frame (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 5303298951 | Trim-bodyside, Black |
|
- | |||||
| 59 | 318072507 | Tube,oven Vent |
|
- | |||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 71 | 318071111 | Shield-rear Wall |
|
- | |||||
| 76 | 318056139 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 82 | 5303305035 | Shield, Insulation |
|
- | |||||
| 83 | 318089521 | Liner,oven |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 88 | 318118903 | Rod-latch |
|
- | |||||
| 97 | 318066602 | Wrapper,back & Sides |
|
- | |||||
| 98 | 318029322 | Trim-side Inner Rh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 101 | 318039511 | Bracket-trim,black |
|
- | |||||
| 103 | 318028710 | Trim-base, Black |
|
$ 129.83 | |||||
| 121 | 318145001 | Wrapper-base |
|
- | |||||
| 123 | 318071443 | Shield-insulation,top & Sides |
|
- | |||||
| 126 | 3016303 | Clip,insulator |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 187 | 318013501 | Tube,latch Rod |
|
- | |||||
| 189 | 318042500 | Plate,retainer |
|
- | |||||
| 227 | 5303323955 | Clip-retainer |
|
- | |||||
| 58A | 318133750 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133737 | Insulation,oven Back |
|
- | |||||
| 58C | 5303311220 | Insulation,oven Vent |
|
- | |||||
| 6B | 5303305676 | Shelf-oven |
|
- | |||||
| 98A | 318029323 | Trim-side Inner Lh |
|
- | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F141 | 5303302280 | Thermostat-safety |
|
$ 203.24 | |||||
| F15 | 3201908 | Light,oven |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp (Replaces: 318198500) |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F67 | 5303323865 | Element-bake |
|
- | |||||
| F89 | 318095957 | Motor,latch Assy ,w/brkt & Switch (Replaces: 318095937) |
|
Immediately | $ 127.75 | ||||
| NI | 318078522 | Box & Wires Assy |
|
- | |||||
| NI | 3015722 | Clip-wire |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 318120710 | Switch,cooktop Shutoff |
|
- | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 318092306 | Harness,main |
|
- |
