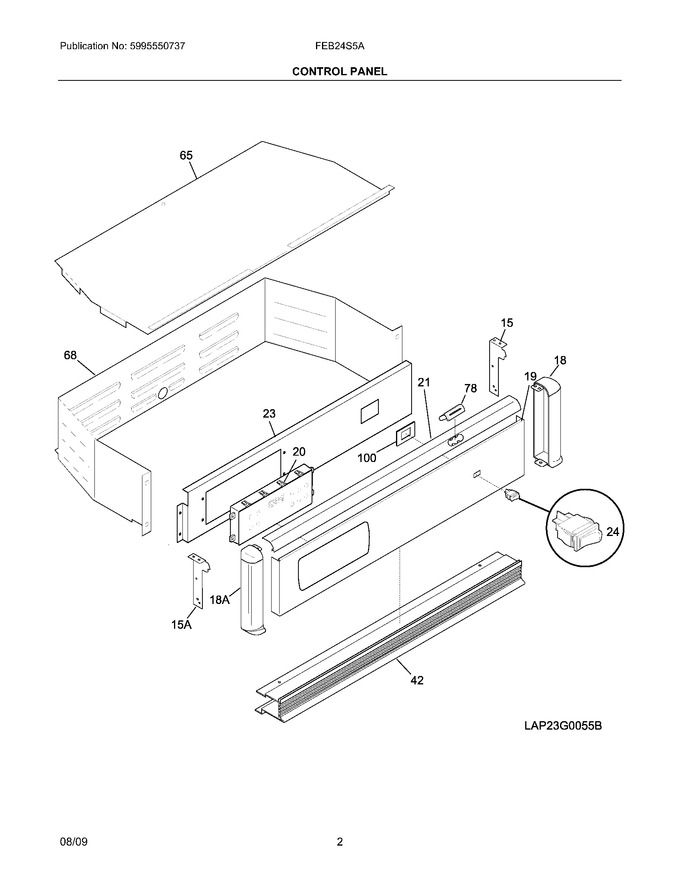

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
19	318234103		Panel,control ,black		Appelez-nous	-
21	5303300408		Trim-top, Black		Appelez-nous	-
23	318015035		Bracket,clock/timer Mtg		Appelez-nous	-
42	318027519		Trim,vent ,black		Appelez-nous	-
65	318038804		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
78	318037121		Cover,oven Vent ,black				$ 68.04
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
15A	5303302287		Support-backguard, Lh		Appelez-nous	-
18A	5303311232		End Cap, Black, Lh		Appelez-nous	-
F20	318414203		Clock/timer,electronic ,black		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	318189308		Deflector,timer		Appelez-nous	-
NI	316419141		Overlay,clock ,black ,es300   (Replaces: 316419103)			Immediately	$ 56.87
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/4 ,square Drive				$ 8.35
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
