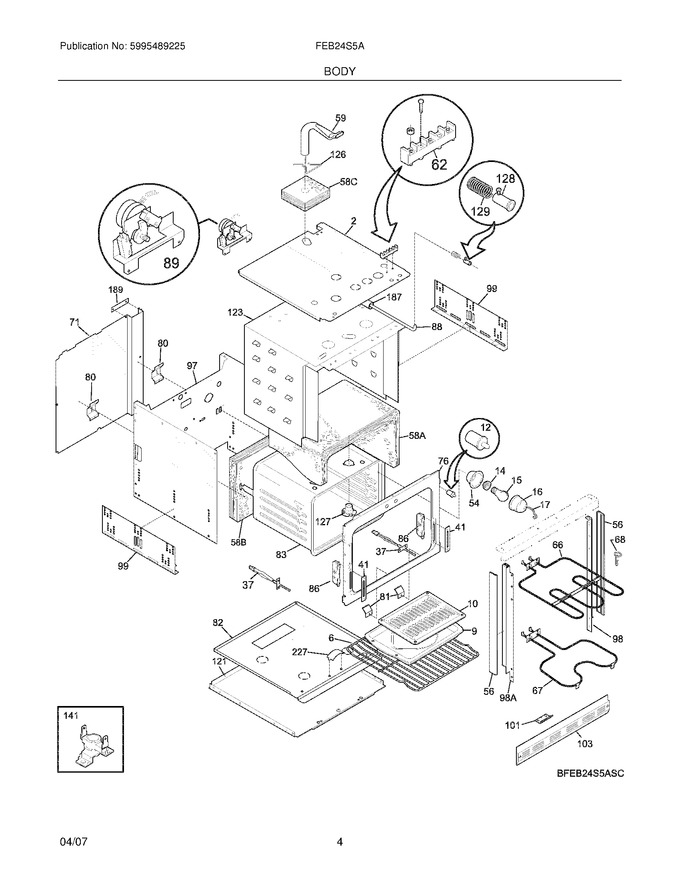

01 - Cover
03 - Control Panel
05 - Body
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318195900 | Wrapper,outer ,top |
|
- | |||||
| 6 | 318345204 | Rack,oven ,(2) |
|
- | |||||
| 9 | 5303317977 | Pan,broileroptional Access0ry |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Panoptional Access0ry |
|
- | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 56 | 318176900 | Trim,bodyside ,bisque |
|
- | |||||
| 59 | 318072537 | Tube,oven Vent |
|
- | |||||
| 66 | 318255606 | Element,broil ,3400w (Replaces: 318255601) |
|
Immediately | $ 197.39 | ||||
| 68 | 5304403015 | Support,hanger ,(2) ,broil Element |
|
$ 35.04 | |||||
| 71 | 318071111 | Shield-rear Wall |
|
- | |||||
| 76 | 318056139 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 82 | 5303305035 | Shield, Insulation |
|
- | |||||
| 83 | 318089521 | Liner,oven |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 88 | 318118903 | Rod-latch |
|
- | |||||
| 89 | 318095957 | Motor,latch Assy ,w/brkt & Switch (Replaces: 318095943) |
|
Immediately | $ 127.75 | ||||
| 97 | 318066602 | Wrapper,back & Sides |
|
- | |||||
| 98 | 318029342 | Trim,side ,inner,rh |
|
- | |||||
| 99 | 318284201 | Panel,adjustable ,side ,(2) |
|
- | |||||
| 101 | 318039514 | Bracket,trim ,bisque |
|
- | |||||
| 103 | 318028713 | Trim,base ,bisque |
|
- | |||||
| 121 | 318145005 | Wrapper,base |
|
- | |||||
| 123 | 318071444 | Shield,insulation ,top & Sides |
|
- | |||||
| 126 | 3016303 | Clip,insulator |
|
- | |||||
| 127 | 318317100 | Adapter Assembly,vent Tube ,w/converter |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 187 | 318013501 | Tube,latch Rod |
|
- | |||||
| 189 | 318042500 | Plate,retainer |
|
- | |||||
| 227 | 318370900 | Clip,retainer |
|
- | |||||
| 58A | 318285044 | Insulation,oven Wrapper |
|
$ 111.72 | |||||
| 58B | 318285036 | Insulation,oven Back |
|
- | |||||
| 58C | 5303311220 | Insulation,oven Vent |
|
- | |||||
| 98A | 318029343 | Trim,side ,inner,lh |
|
- | |||||
| F12 | 318394803 | Switch,light (Replaces: 318089913) |
|
Immediately | $ 44.23 | ||||
| F141 | 5303302280 | Thermostat-safety |
|
$ 203.24 | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| F67 | 318255101 | Element,bake ,2100w |
|
$ 185.70 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 318120711 | Switch |
|
$ 87.68 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 318078563 | Box & Wires Assy |
|
- | |||||
| NI | 3015722 | Clip-wire Retainer |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
